In this article we will take you from the basics of installing Tivoli Directory Server V6.3 to configuring a Master-Master (or as IBM calls it Peer-To-Peer) LDAP configuration. Along the way we will also upgrade TDS V6.3 to V6.3.0.4. We will also do a little eWas (Embedded WebSphere Application Server) work. eWas is used by the TDS Web Administration Tool. While this tool is not absolutely necessary to manage TDS, it does come in handy from time-to-time for the novice LDAP administrator (or even the expert when he forgets how to get something done from the command-line). Bare with us during the boring, gui-based installations and upgrades, as we will eventually get to the good part of creating and configuring LADP instances all from the command-line.

Background
Assumptions
Requirements
Architecture
Scripts
Procedure

• Pre-Installation Work
• Install TDS On Primary Master
• Install TDS On Secondary Master
• Upgrade TDS On Primary Master
• Upgrade TDS On Secondary Master
• Upgrade eWas On Primary Master
• Upgrade eWas On Secondary Master
• Post-Installation Work
• Configure Primary TDS Instance
• Configure Secondary TDS Instance

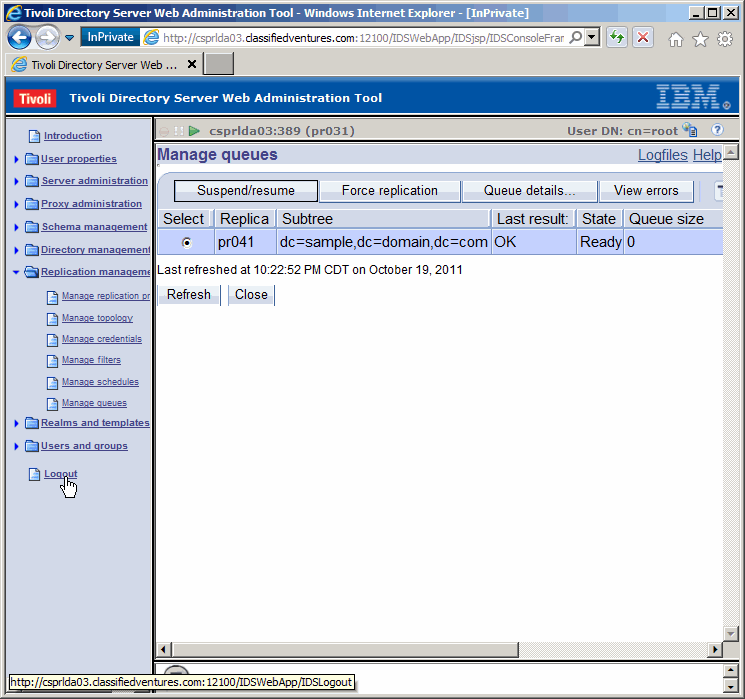

• Replication - Configure & Test
• Web Administration Tool
• Data Migration

Conclusion
Printing

After years of struggling with Tivoli Directory Server V6.1, we got, and jumped at, the chance to migrate to V6.3. Notice we say "migrate" as opposed to "upgrade". While it might be possible to upgrade, it is far cleaner to migrate. What makes it so easy is really just the nature of LDAP and ease of migrating schemas and data. Perhaps there are more difficult LDAP configurations where an upgrade would be a better fit, but here with a rather simple Master-Master, no SSL configuration, the migration worked just fine. While others may or may not have had bad experiences with V6.1, we definitely did (on AIX 5.3). We had periods of frequent crashes and hangs. Coming from the Netscape / Sun LDAP world, I was not accustom to any LDAP problems.

As always, we try to cover every little detail in an article, always trying to set us apart from the "other guy" so-to-speak. However, a good working knowledge of AIX and LDAP will be of great assistance when following this article.

Requirements for duplicating this exercise in your environment are:

• IBM AIX 6.1 (64-Bit)
• Tivoli Directory Server 6.3.0.0
• Tivoli Directory Server 6.3.0.0 Fix Pack 4
• An SSH/X-Windows capable workstation. We are using Windows 7 with NetSarang Xmanager 4

Optional requirements for this exercise are listed here. At the time of this article's publication, the following IBM product codes were used. We realize that product codes can change or that the products were instaled via DVD or CD-ROM. It is important to note that the two products listed here, even though it may not look like it later in the article, are totally seperate.

• CRC8DML - Tivoli Directory Server 6.3 For AIX
• 6.3.0.0-TIV-ITDS-AIX-IF0004 - Tivoli Directory Server 6.3 For AIX Fixpack 4
• 7.0.0.13-WS-UPDI-AixPPC64 - eWas Update Installer for 64-Bit AIX

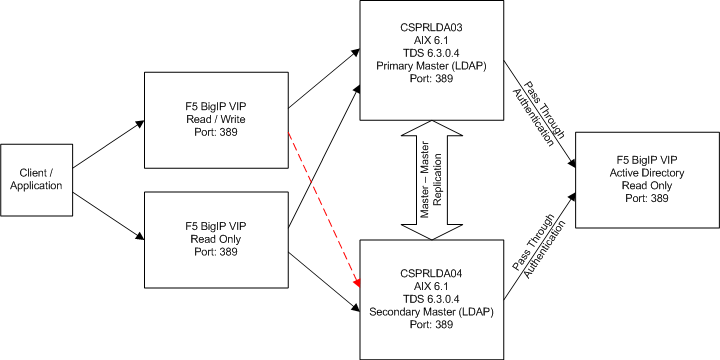

This diagram depicts the architecture used for this article. This multi-tiered architecture protects the Active Directoy server data as the only access to it is a read-only connection from the Tivoli Directory Servers.

There are a few things to mention about this diagram as it applies to this article:

First, this article really only applies to the middle part of the diagram. It is a good thing however, to understand the entire picture. We will of course be setting up the Master-Master LDAP replication configuration, and also pass-through authentication in a later article.

Secondly, notice the red dashed line? IBM has told us repeatedly that even though replication in a Master-Master configuration works in both directions, it is best practice not writing to both replica's concurrently. In our case, we have set up the BigIP VIP to always write to the primary master if it is available; thus the red dashed line. For the "read only" VIP, the load is distributed to both replica's.

Throughout this article/procedure, certain scripts are executed, sometimes without explanation. Here are the scripts available for download.

buildFileSystems.sh
createSampleSuffixEntry.ldif
getEWASversion.sh
getTDIversion.sh
startTDSconsole.sh
stopTDSconsole.sh
peerServer.ldif
myCredentialsFile.ldif
myTopologyFile.ldif
createOU.ldif

Now that we have laid the groundwork, let's get going with the actual steps.

As noted above in the Architecture section of this article, the primary and secondary LDAP servers (LPAR's) are CSPRLDA03 and CSPRLDA04, respectively. These LPAR's have been configured exactly in the same manner with exactly the same resources, and on different managed systems for a more highly available replicated LDAP resource. As we have received these like systems from our AIX system administrators, we will configure them identically as much as possible.

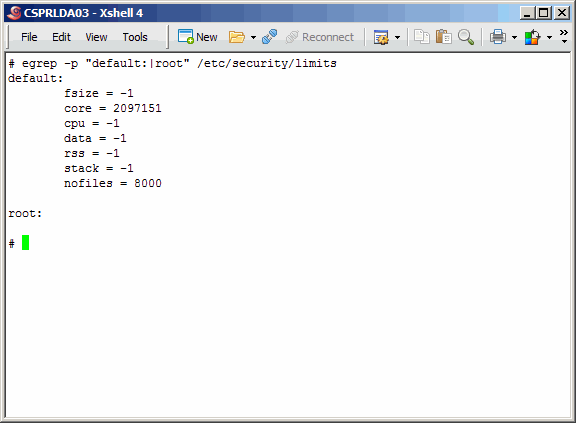

On the primary master, checking the ulimits for root, we can see that the system default is set to let all users have what they want. Probably not appropriate for a general purpose server, but certainly fine for a dedicated one.


egrep -p "default:|root" /etc/security/limits



Also verify the ulimits on the secondary master.


egrep -p "default:|root" /etc/security/limits

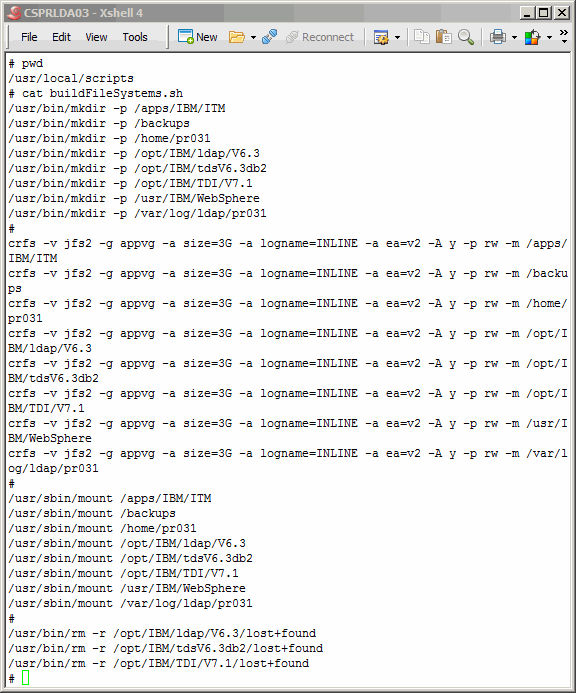

We will use the script buildFileSystems.sh to create logical volumes and map them to file systems. Notice the TDI directories; they will not be used during this exercise, but will be used in a follow-on article. The primary master alone will house TDI.


pwd
cat buildFileSystems.sh

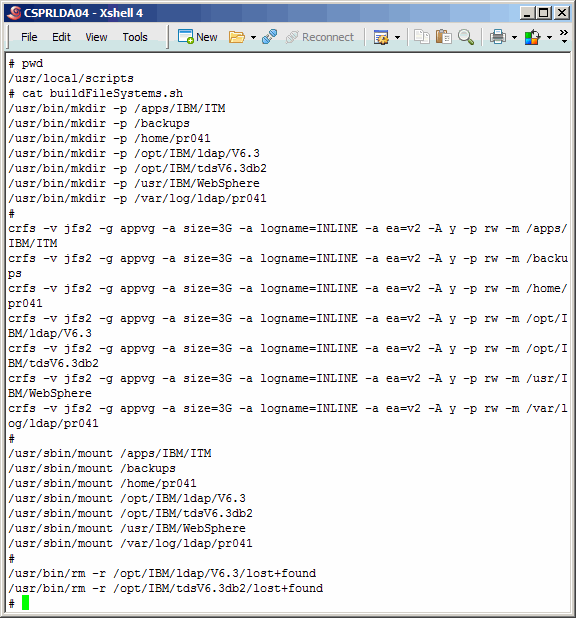

Same script, minus the TDI mount points, used here to configure file systems. Notice the last two lines. For some unkown reason, IBM's TDS and DB2 will not install into a directory with ANY file in it, including lost+found. We remove the file. It can probably be added back after the install; we do not bother.


pwd
cat buildFileSystems.sh



Screenshot of the primary master before creating and mounting the file systems.


df -k

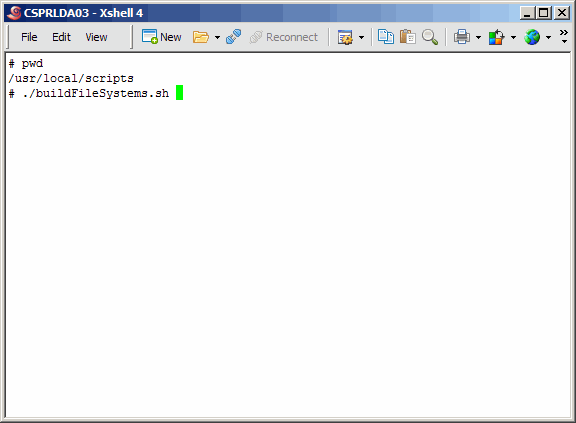

Execute the buildFileSystems.sh script on the primary master.


pwd
./buildFileSystems.sh

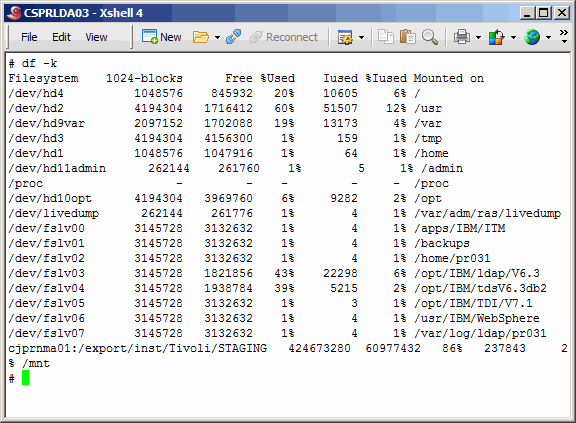

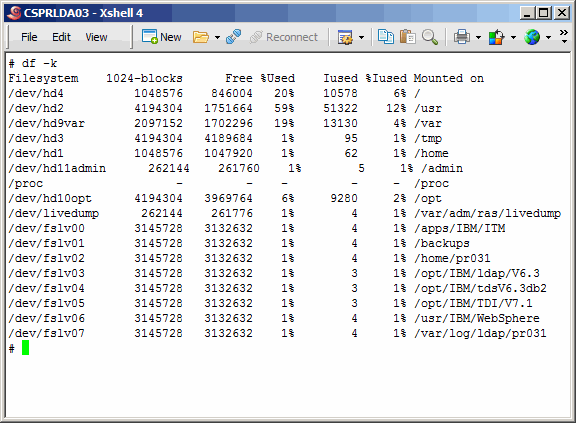

Now a picture of what the file systems look like on the primary master. Note that the file systems under /opt are the default locations where the IBM installers will want to lay down the software products.


df -k

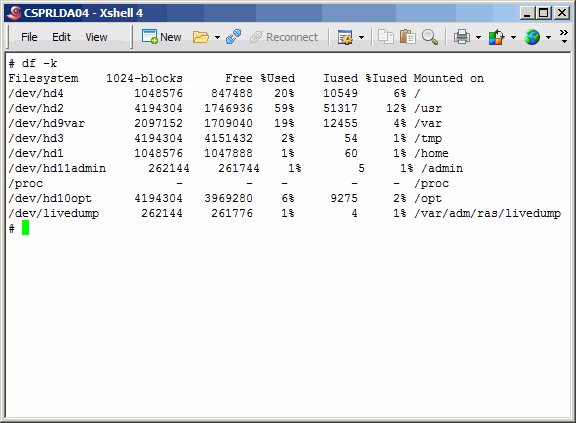

Now the secondary master, before file system creation.


df -k

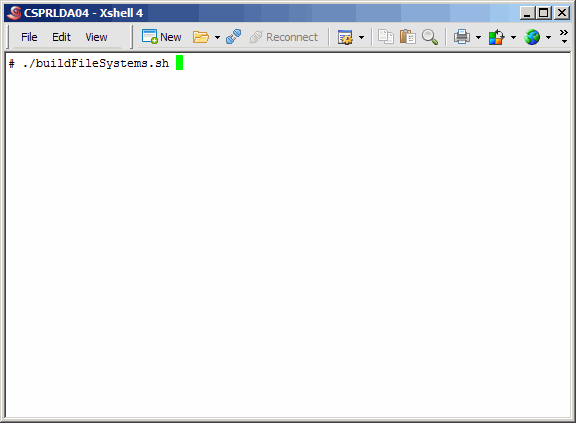

And run the script on the secondary master.


./buildFileSystems.sh

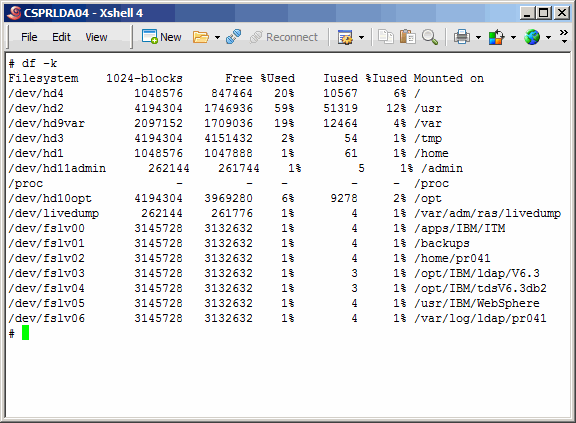

Without TDI, a slightly different file system layout on the secondary master.


df -k

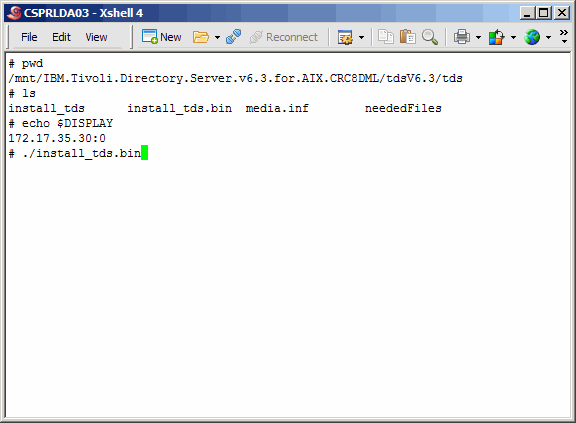

Wherever you decided to expand the product media, drill down in the directory structure as shown here and execute install_tds.bin. Of course you must have your X-Windows server running on your PC, and you must first set your DISPLAY variable on the UNIX server, as we have already done.


pwd
ls
echo $DISPLAY
./install_tds.bin



Choose your language. OK.......

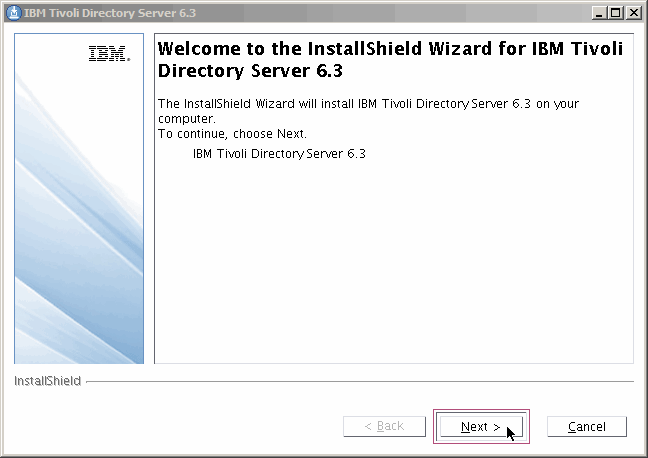

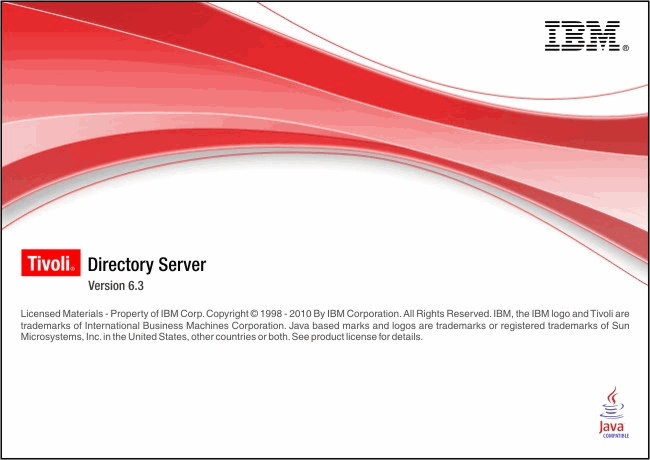

Splash screen for your viewing pleasure.

Next.......

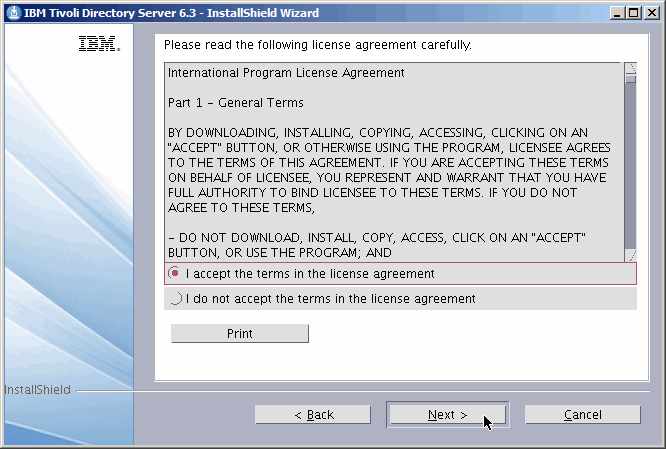

Accept agreement and Next.......

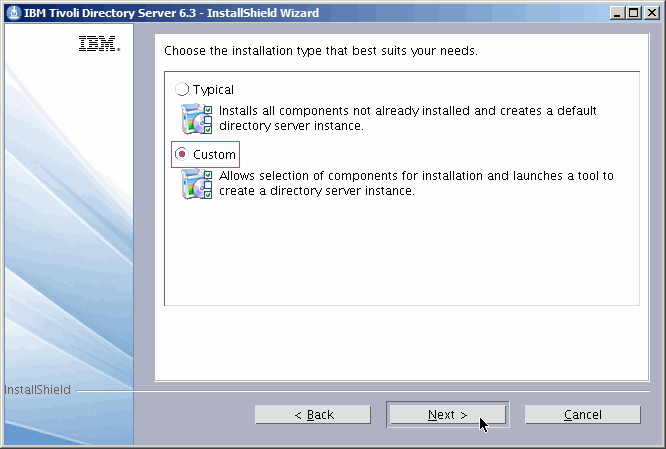

Always choose "Custom". It will show you what the defaults are. Next.......

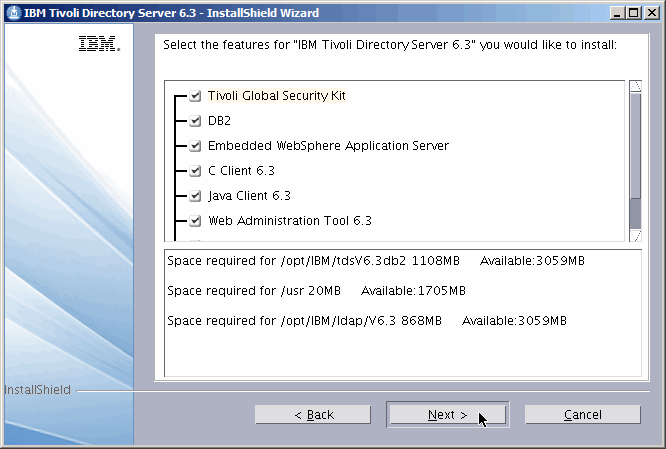

The default seems to be to install everything. We are not hurt by this. Next.....

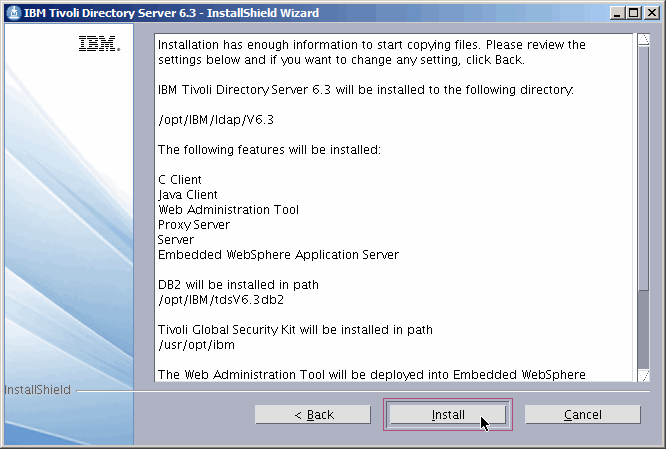

Verify your choices, Install.........

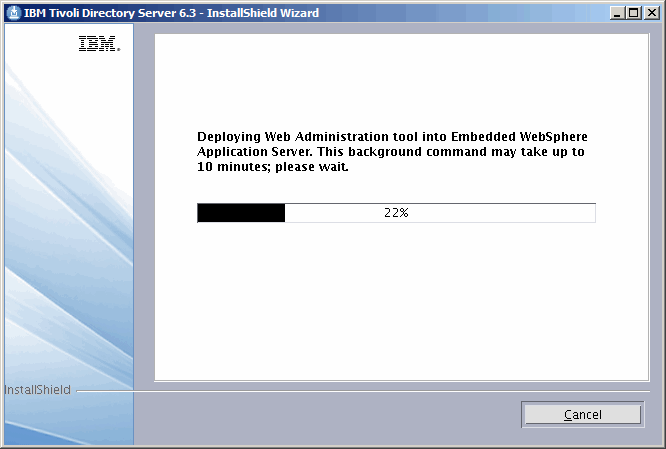

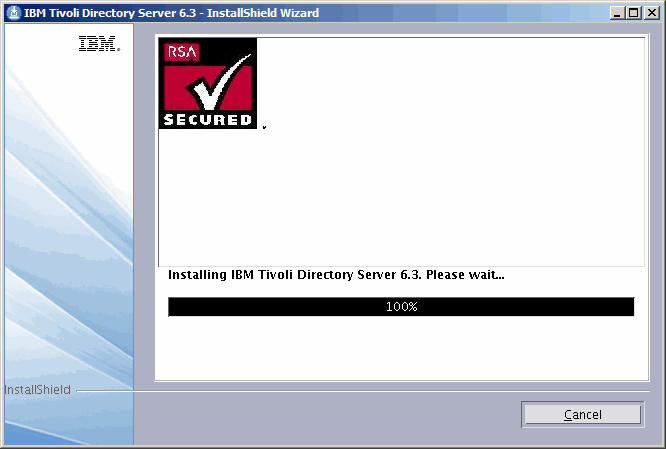

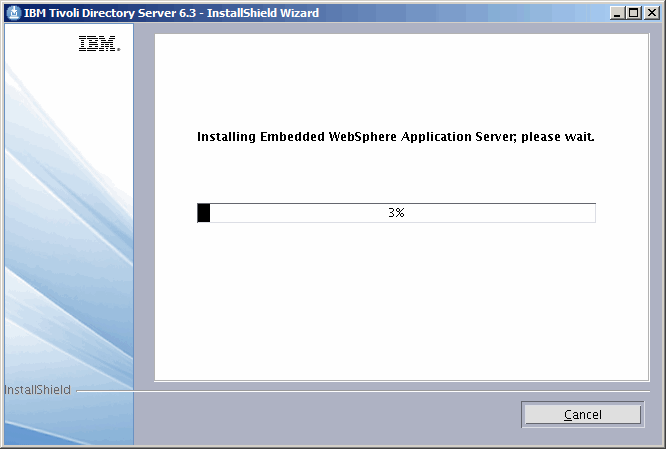

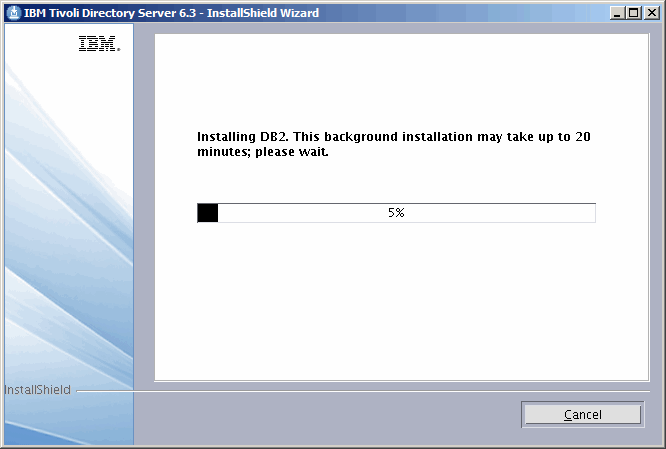

Viewing pleasure......

Viewing pleasure......

Viewing pleasure......

Viewing pleasure......

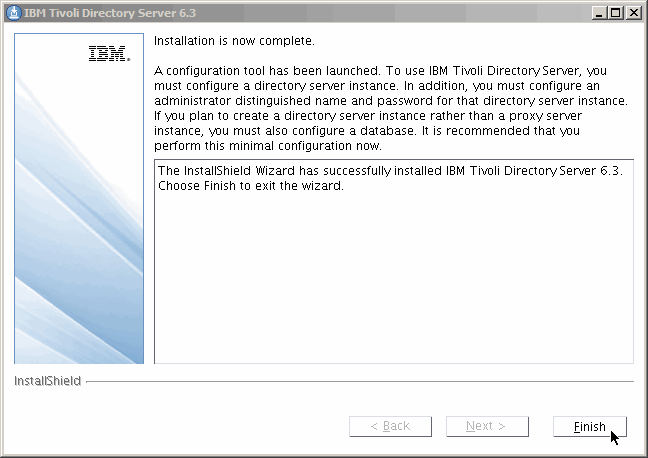

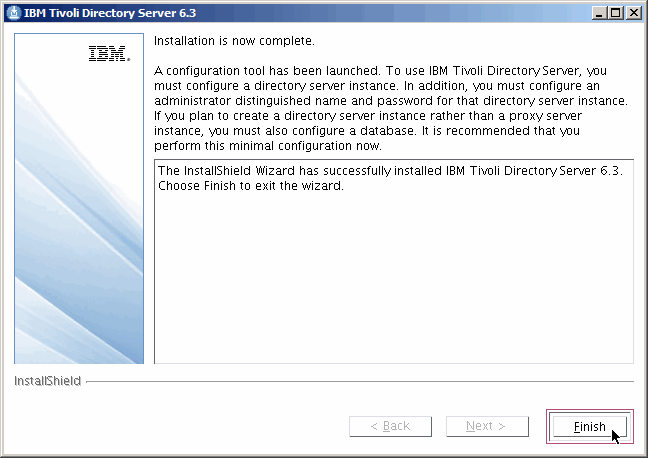

Finish..........

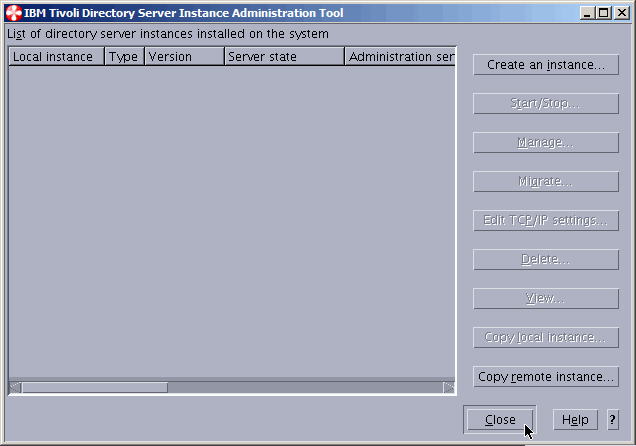

We do not want to create an instance via the gui; we will use the command line later. Close........

Yes, we are sure.

Now if we take a look at the file systems we see that the TDS and DB2 file systems are being used.


df -k



We will be far less "wordy" in this section. We really only include it as a record of the installation. But again, start by executing install_tds.bin.


pwd
ls
echo $DISPLAY
./install_tds.bin



Select language. OK.........

Splash screen.....

Next........

Accept and Next.........

Custom, and Next......

Verify and Next.......

Install.......

Viewing pleasure.......

Viewing pleasure.......

Viewing pleasure.......

Viewing pleasure.......

Finish.........

Close...........

Yes.....

Yes, we are sure.

Updating TDS is a bit different than other products. And usually it involves updating the eWas console application as well. It certainly did this time so we will go over that as well. But first, we need to shut down anything currently using LDAP (nothing since we never created any LDAP instance), and also the eWas server. As it turns out, the installation of TDS starts the server and leaves it running after the install is complete.

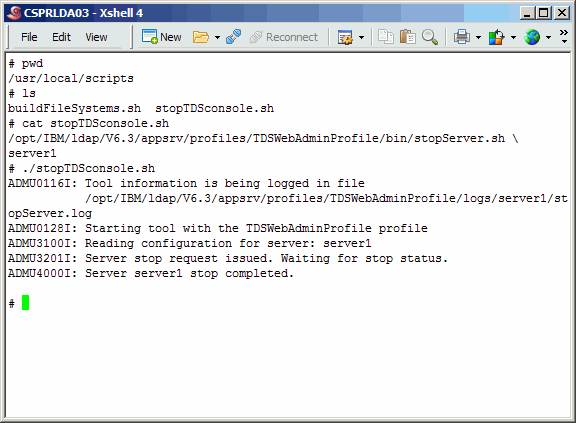

As with most things, we create a sript to shut down the eWas application server. For TDS this is a very good thing because most TDS administrators are probably not WebSphere administrators, and finding the startup/shutdown scripts can be a bit painful if you are not familar with WebSphere. Here we stop the server.


pwd
ls
/opt/IBM/ldap/V6.3/appsrv/profiles/TDSWebAdminProfile\
          /bin/stopServer.sh server1

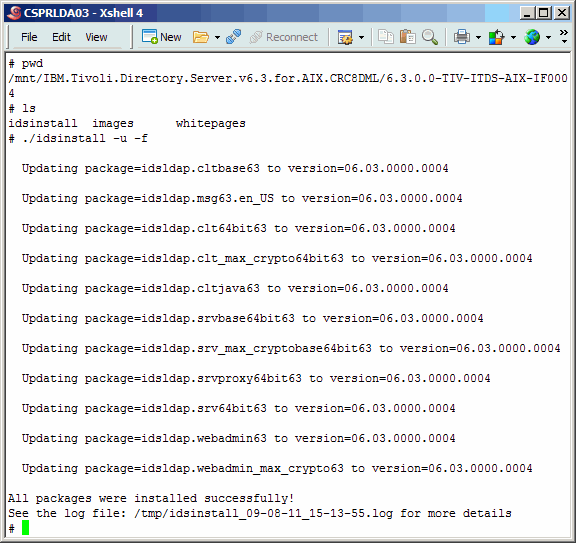

After unpacking the TDS 6.3.0.0 FP4 archive, drill down and execute the idsinstall script. All it really does is install the new TDS binaries via the rpm command. Be sure to use the command line arguments as we show here.


pwd
ls
./idsinstall -u -f

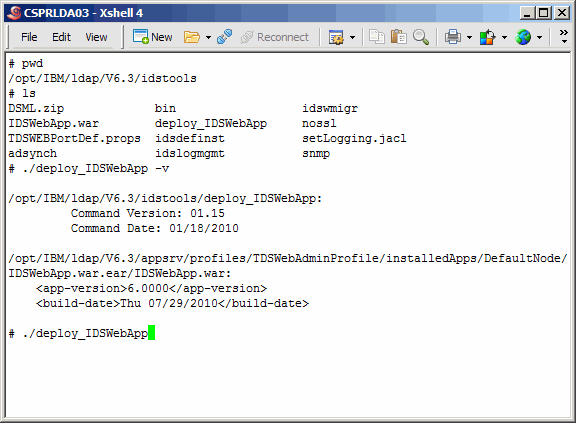

Assuming that the previous step was successful, let's see if we need to update the eWas console application. This can be done as shown here. The output shows that the application version is 6.000. In the README that comes with the Fixpack, you will see that the current application version is 6.0001. Therefore we will upgrade. The upgrade is accomplished by running the same command, without any arguments.


pwd
ls
./deploy_IDSWebApp -v
./deploy_IDSWebApp



The upgrade will stop the applcation server, deploy the new application and then start the splication, as shown here. On our system it took about five minutes to complete.

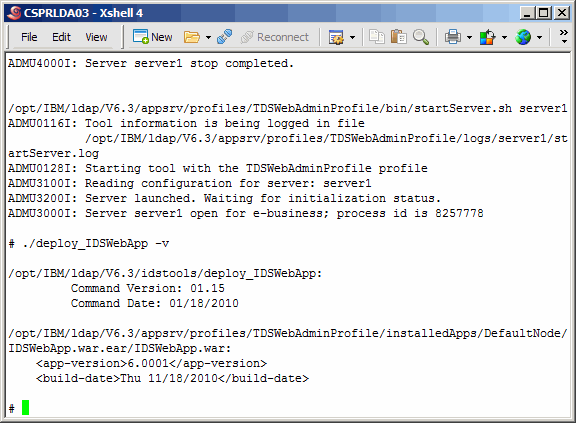

Run the version command again to see that indeed version 6.001 is now installed.


pwd
ls
./deploy_TDSWebApp -v



Once again, this procedure is exactly the same on the secondary LDAP master, and we will not be as verbose as the first time around. We leave tis in s a log of our activities only.


pwd
ls
/opt/IBM/ldap/V6.3/appsrv/profiles/TDSWebAdminProfile\
          /bin/stopServer.sh server1



Install the new TDS binaries....


pwd
ls
./idsinstall -u -f



Install the new spplication server.....


pwd
ls
./deploy_IDSWebApp -v
./deploy_IDSWebApp



On our server, the applicaiton server install took five minutes.....

Verify all is well.....


./deploy_IDSWebApp -v

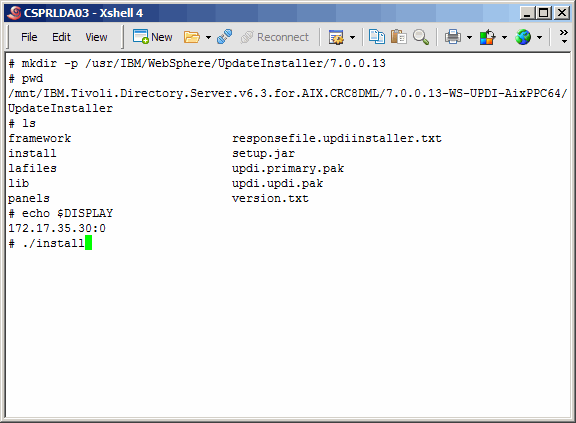

As we have discussed, and shown during the install, when installing TDS we also installed the Embedded WebSphere Application Server (eWas) version 7.0.0.0. At this time, we might as well install the latest version of eWas, 7.0.0.13. Compatibility for this version can be checked on the same part of IBM's website where we retrieved the Fixpack. If you go back to the requirements section of this article, you will notice that we created a file system (/usr/IBM/WebSphere), and we will install the eWas Update Installer to an appropriate subdirectory of this mount point. Separation of file systems makes managing a server so much easier. Now, after expanding the the Update Installer archive (7.0.0.13-WS-UPDI-AixPPC64), drill down and execute the install command as shown here. Be sure, once again, to have your local X-Windows server running and to have your UNIX DISPLAY variable exported.


mkdir -p /usr/IBM/WebSphere\
         /UpdateInstaller/7.0.0.13
pwd
ls
echo $DISPLAY
./install

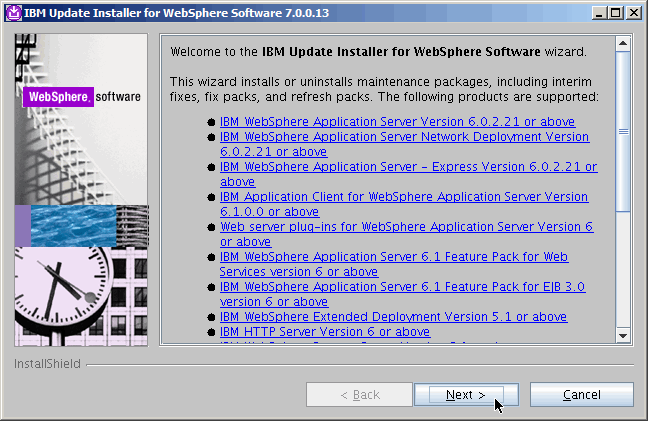

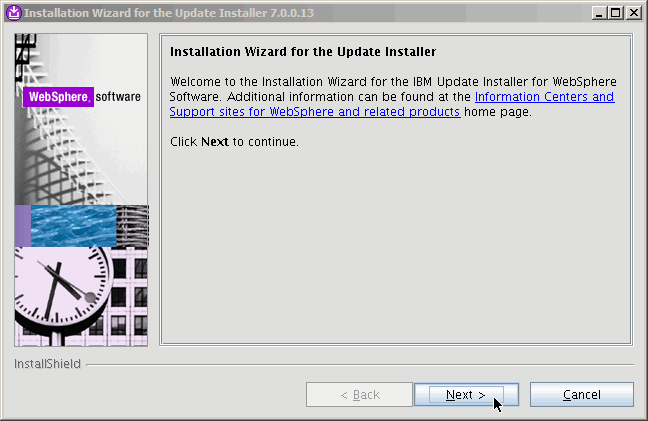

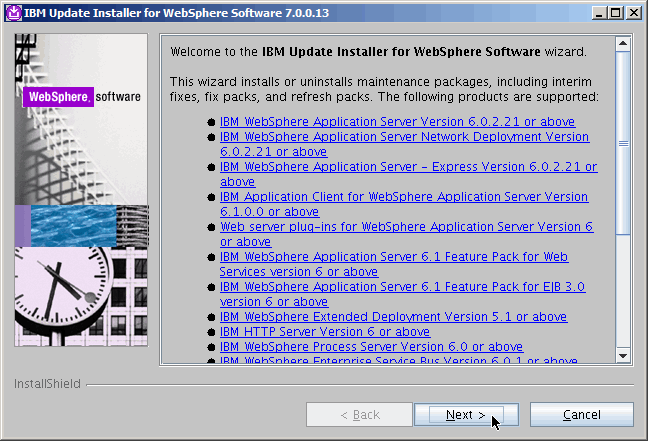

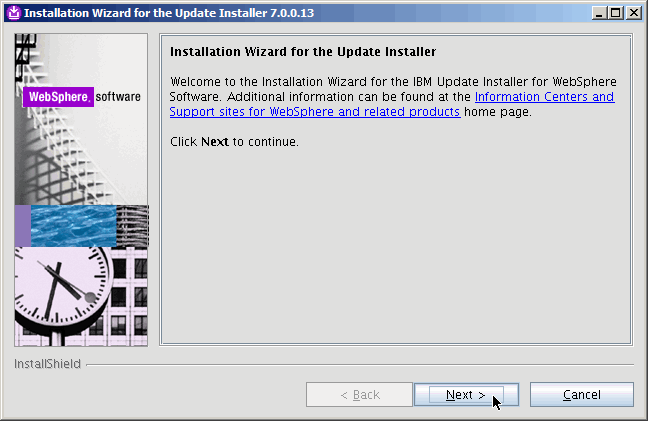

Next.......

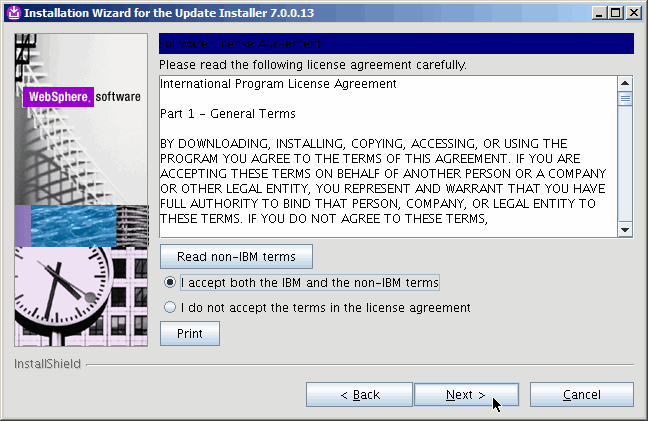

Agree to terms, and Next......

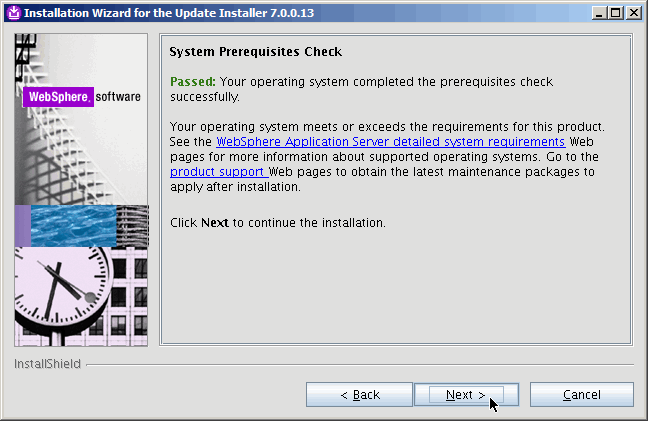

Next.........

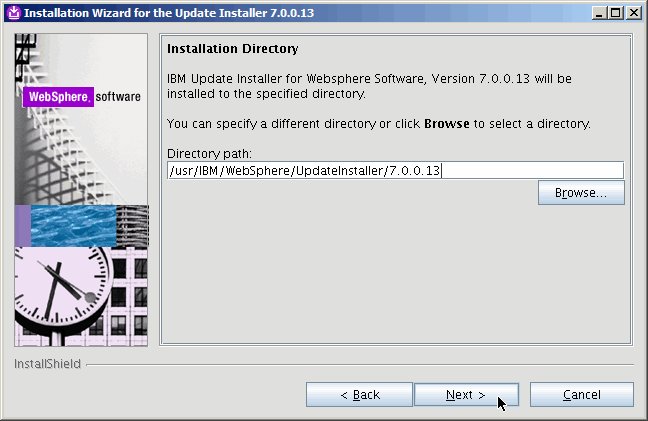

Indicate the appropriate location for the update installer. Remember, the update installer is simply used (once installed) to update eWas. Also, this installer will not create the directory for you; you should have done that prior to this step. Next...........

Pretty fast install. Next.......

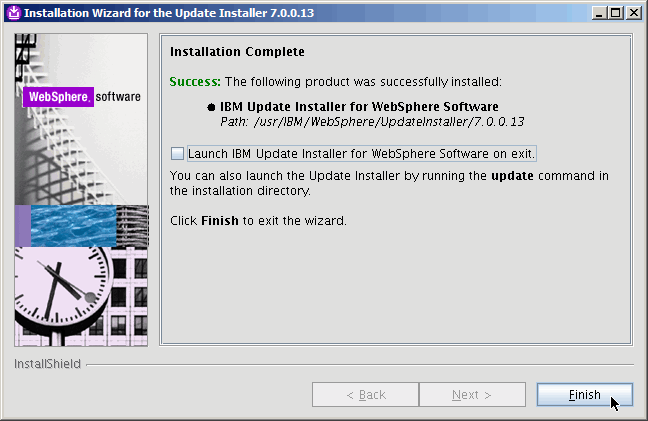

We uncheck the box to run the Update Installer, as we need to bring down the application server first.

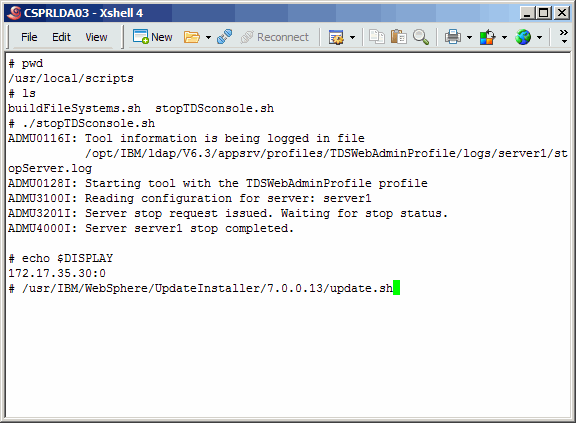

Stop the application server and then run the Update Installer as shown.


pwd
ls
./stopTDSconsole.sh
echo $DISPLAY
/usr/IBM/WebSphere/UpdateInstaller\
        /7.0.0.13/update.sh



Next..........

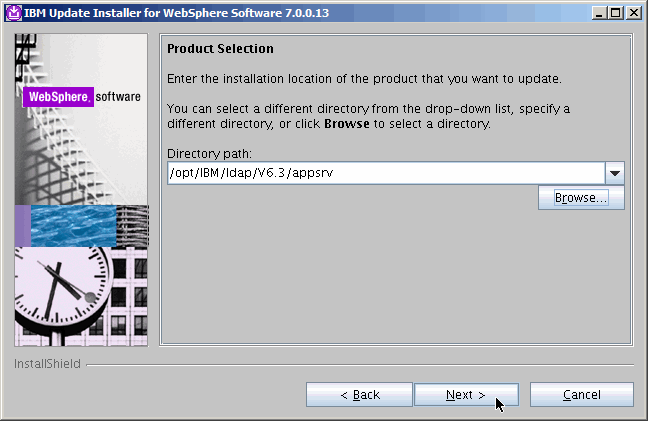

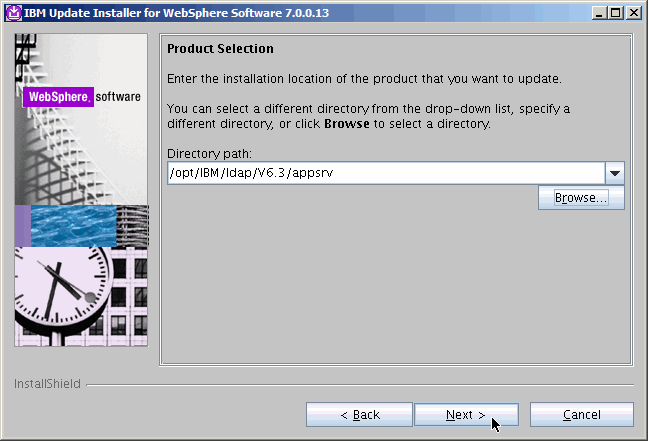

If the Update Installer finds the application server on it's own, great. However it should appear as shown here. If not, make it so. Next........

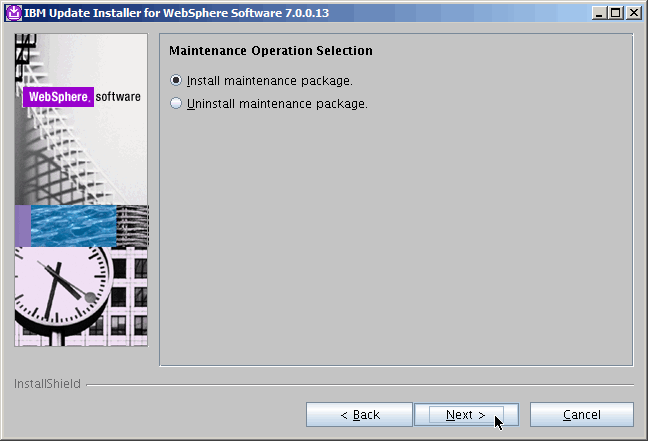

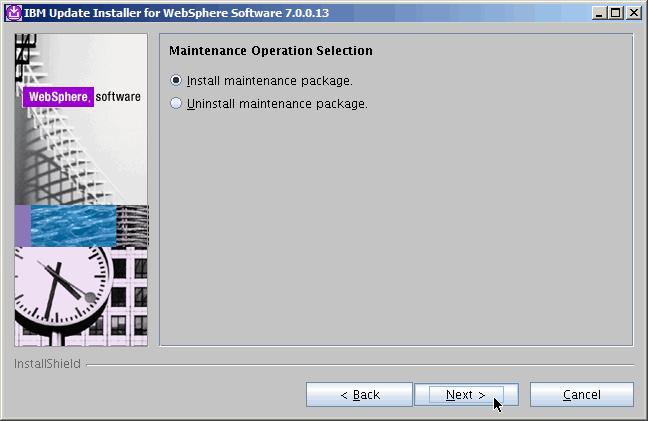

Next.......

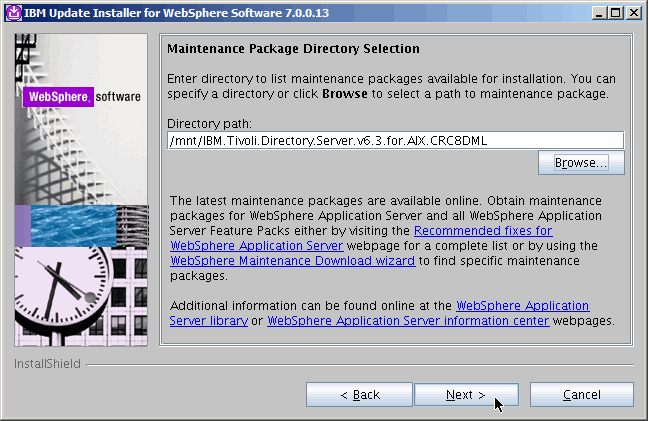

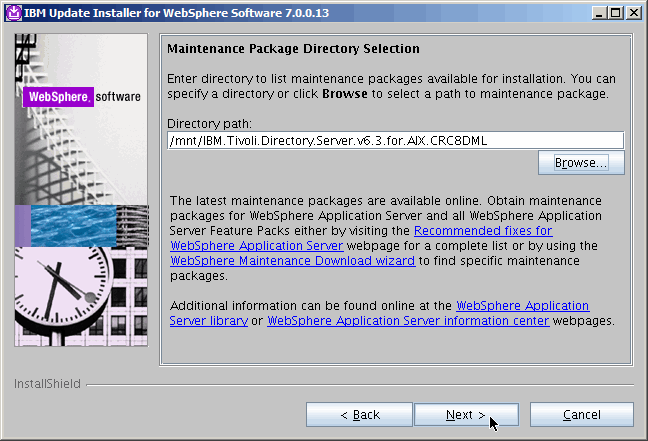

Pick the location where the eWas update was stored. If this is a bit confusing, remember that everything we are using for this update is included on IBM's website. We will not include the current link because it most likely will change, Just perform an internet search like "Recommended fixes for Tivoli Directory Server" and you will find the link.

If you see the screenshot here, you have done everything correctly. You will want to install both maintenance packages as shown. Next.......

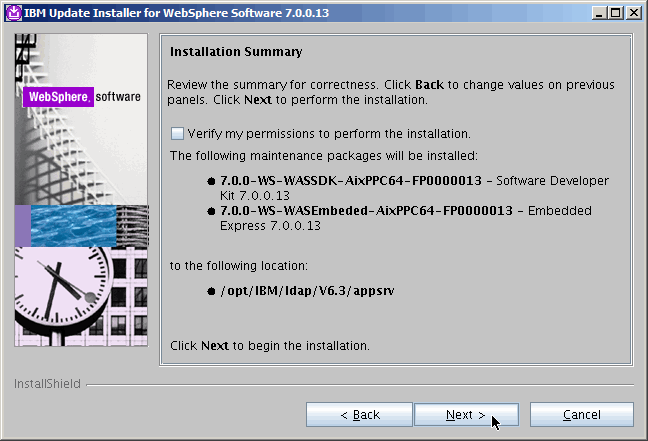

Last chance to change your mind. Next........

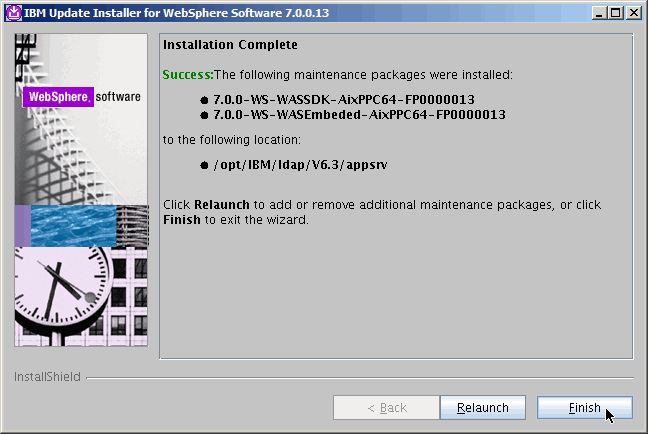

All done. Next..........

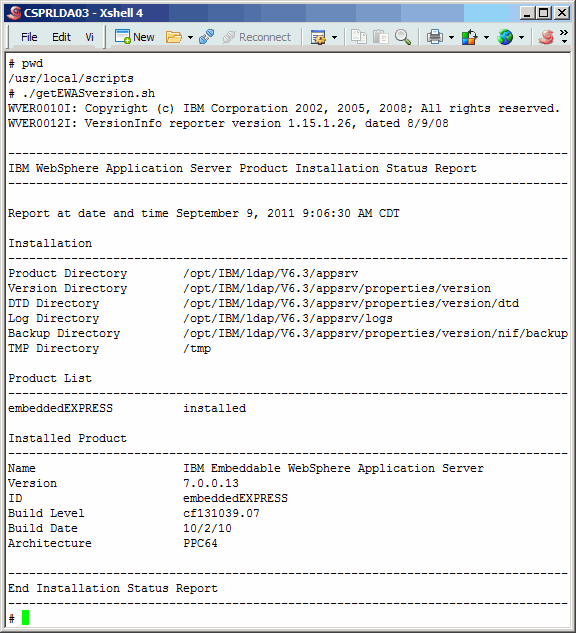

Here we verify that the new eWas version has been installed, however we seem to have neglected showing you the actual command in the screenshot.

/opt/IBM/ldap/V6.3/appsrv/bin/versionInfo.sh

Again, an experienced WebShere administrator would already know this, but want to be thorough in this article.


pwd
./getEWASversion.sh

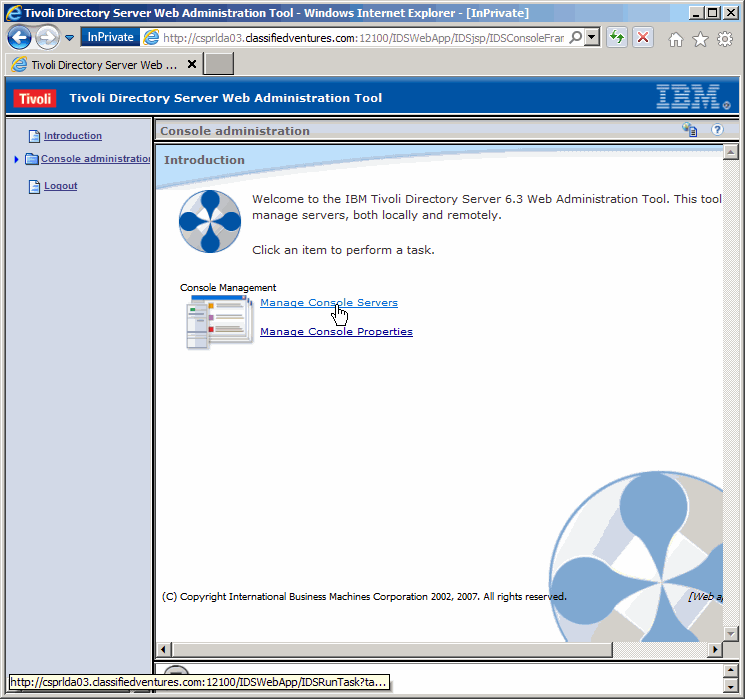

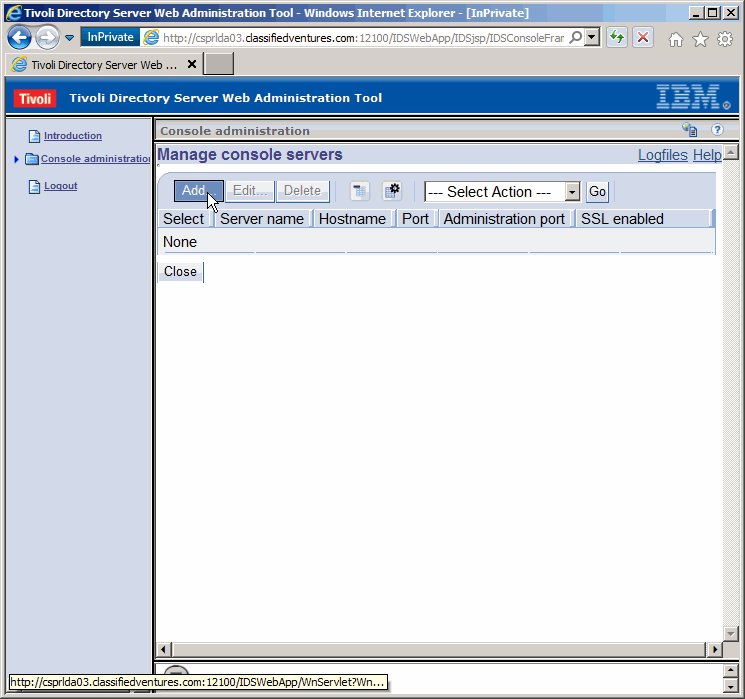

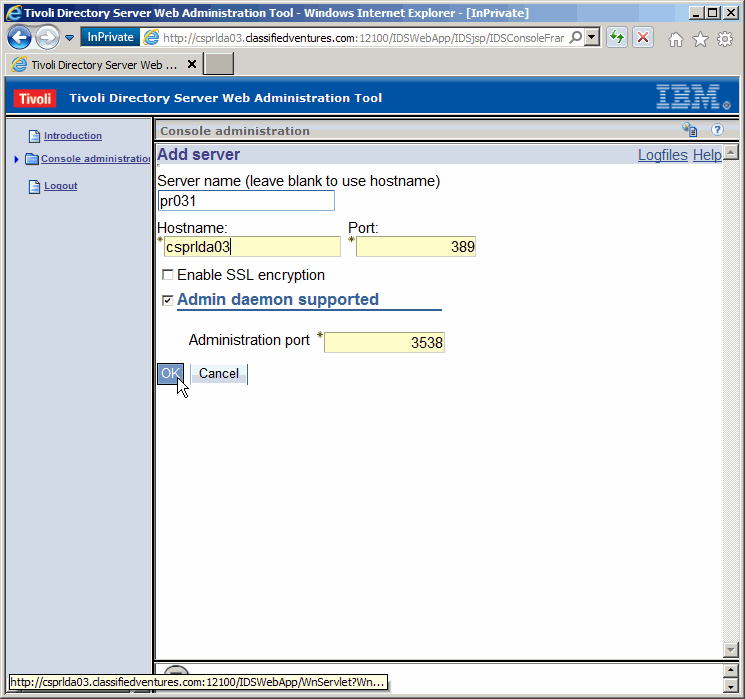

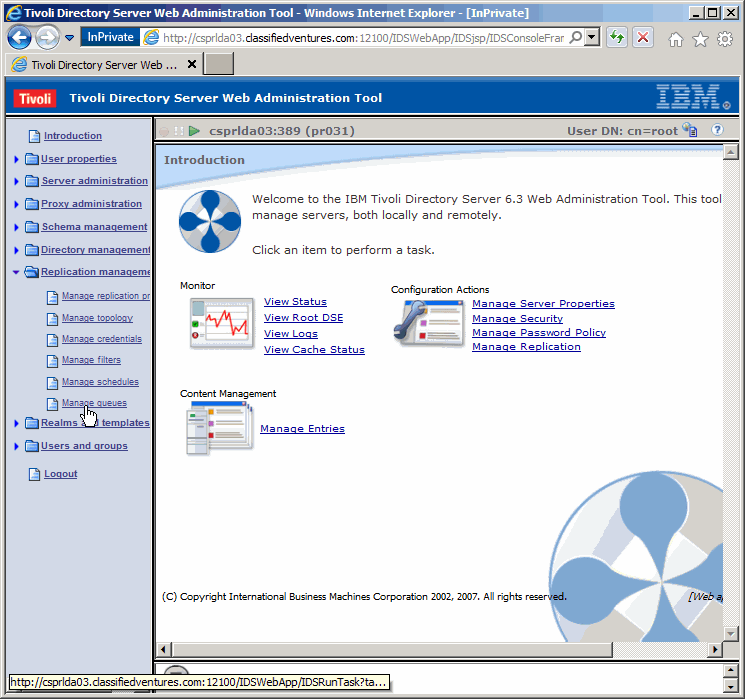

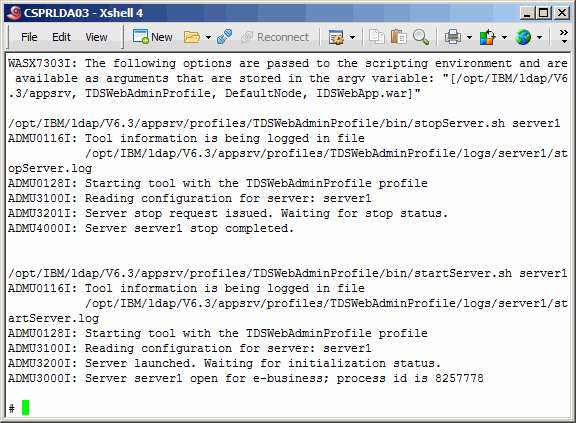

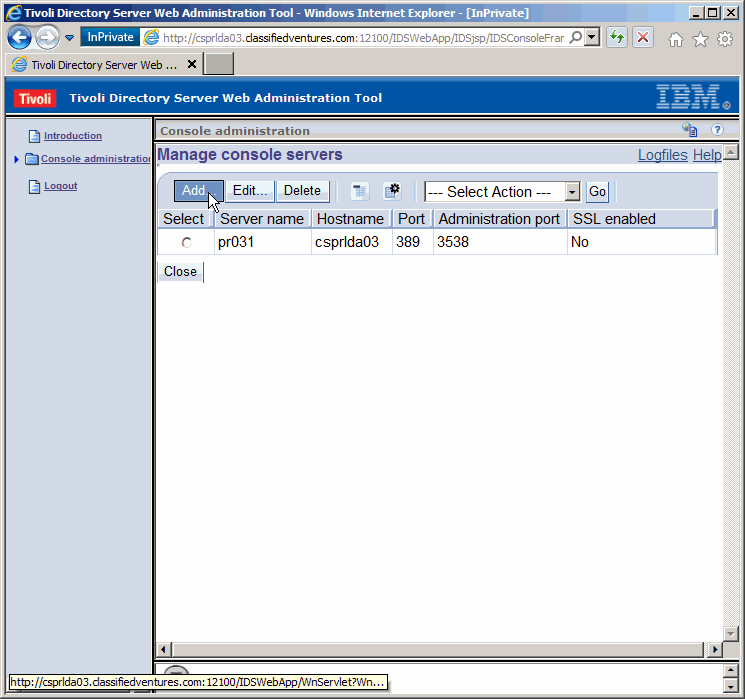

Let's start the TDS Web Administration Tool. This is the application that runs on eWas.


pwd
/opt/IBM/ldap/V6.3/appsrv/profiles\
    /TDSWebAdminProfile/bin/startServer.sh server1

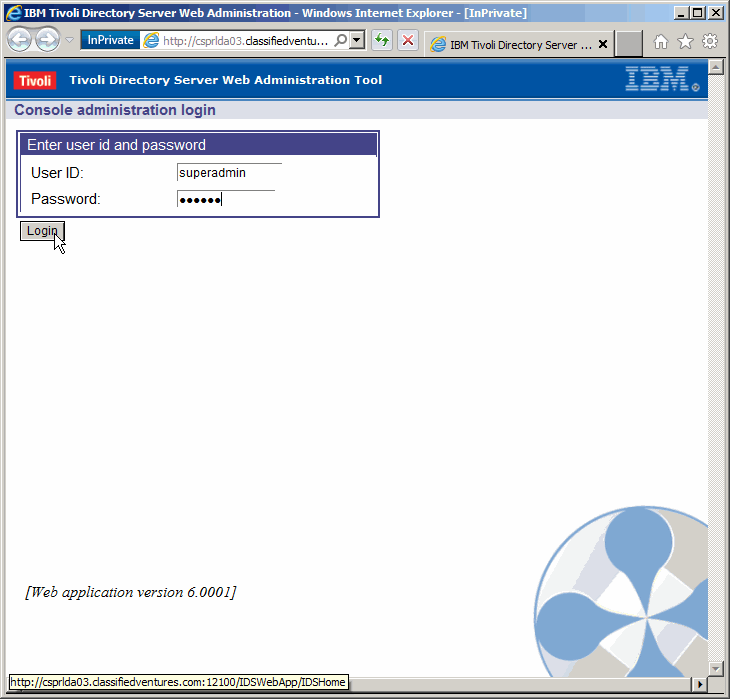

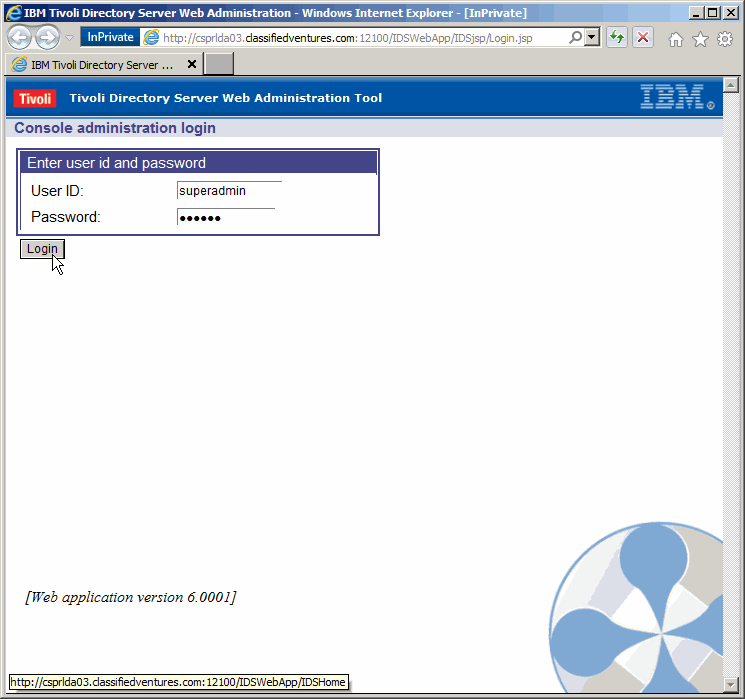

Log in as "superadmin". The default password is "secret". We will not change the password in this article, but it is always a good idea to steer clear of using default passwords.

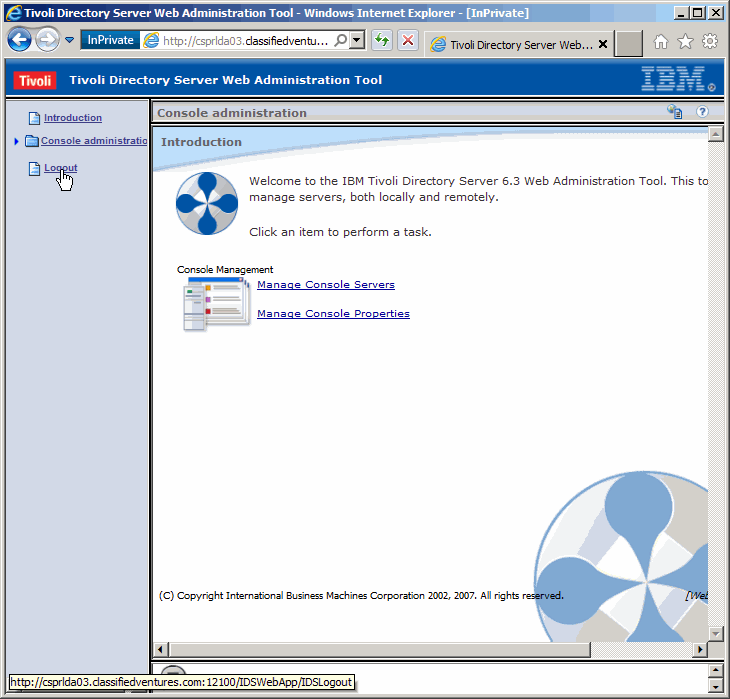

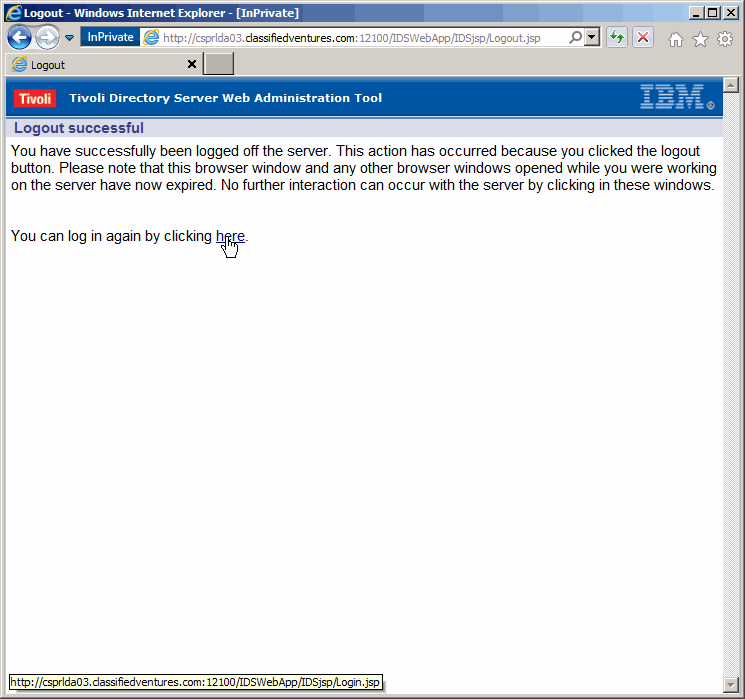

Log out of the console. We only wanted to verify that we could use it. Eventiually you will want to configure the console but that is outside the scope of this article. It would not be possible at this point anyway, as we have no LDAP instances running on this server. You could however configure the console to manage other TDS instances running on other servers.

And again, we will just be "going through the motions" upgrading the secondary master server. Execute the install script as shown.


mkdir -p /usr/IBM/WebSphere/UpdateInstaller/7.0.0.13
pwd
ls
echo $DISPLAY
./install



Next...........

Accept and Next.........

Next.............

Where to install, and Next........

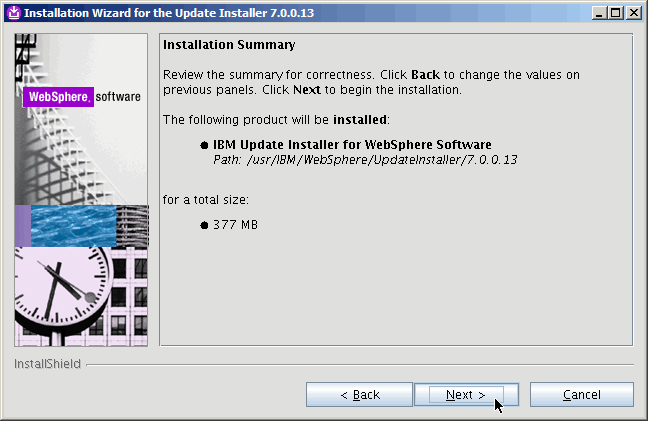

Verify. Next.........

Done. Finish........

Shutdown the application server and run the Update Installer.


pwd
ls
./stopTDSConsole.sh
echo $DISPLAY
/usr/IBM/WebSphere/UpdateInstaller/7.0.0.13/update.sh



Next......

Update the correct eWas software. Next......

Next.........

Select package depot location. Next.....

Next...........

Verify. Next.........

Done. Finish.........

Verify the eWas update.


pwd
./getEWASversion.sh

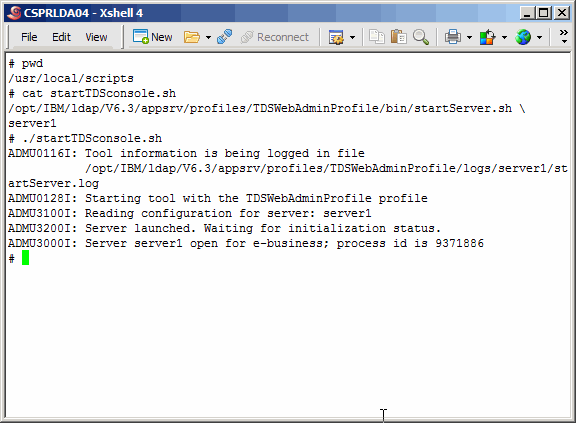

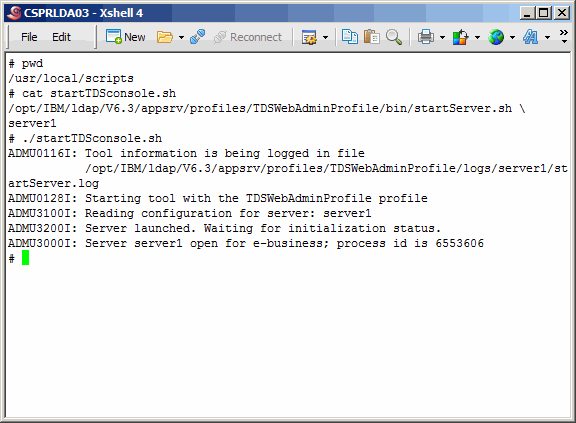

Start the application server.


pwd
./startTDSconsole.sh

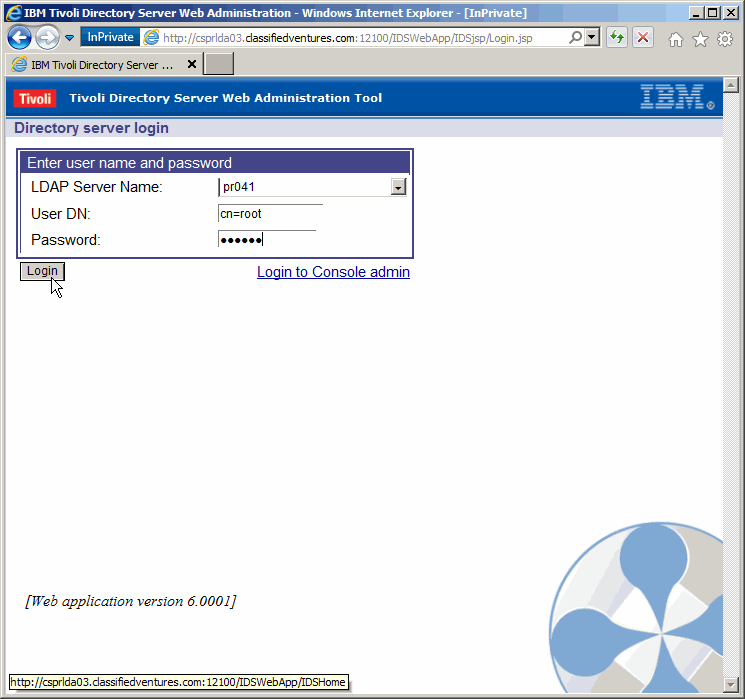

Log in to the TDS web console.

Logout.

As we did in the pre-install work at the beginning of this article, we will perform the post-install work on both the primary master and secondary master in the same article section. This work is actually completely optional. Or you may have other ways of achieving the same or better configuration results. We will begin by editing the system-wide profile, to make a change.

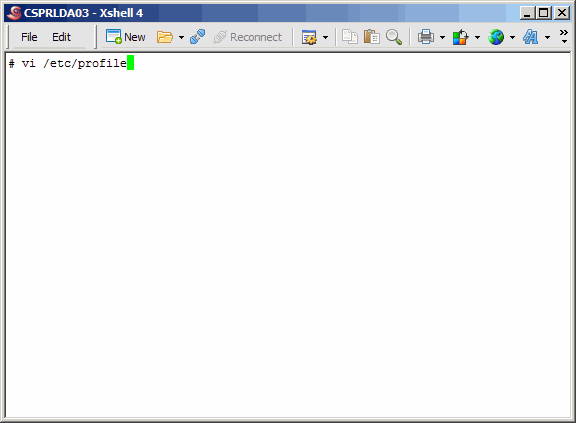

vi /etc/profile

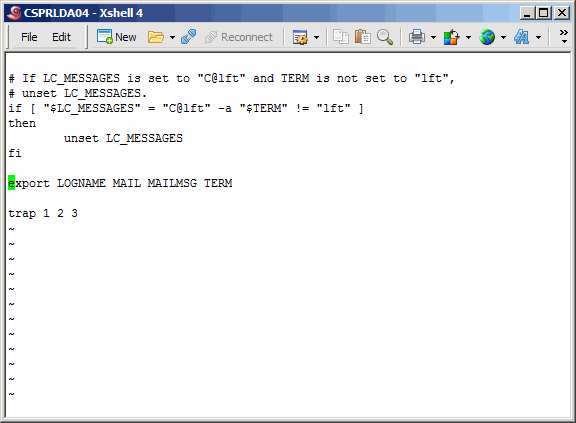

Jump to the bottom of the file. If you are using vi or vim, this is done using a shift-g combination.

Modify the PATH variable as shown. Save an exit.

Source /etc/profile. The which command verifies that your path has been correctly set.


. /etc/profile
which idslink
idslink -g



Here we use the idslink command to set up links for generic client utilities.


idslink -i



Now set up links for IBM-specific client utilities.

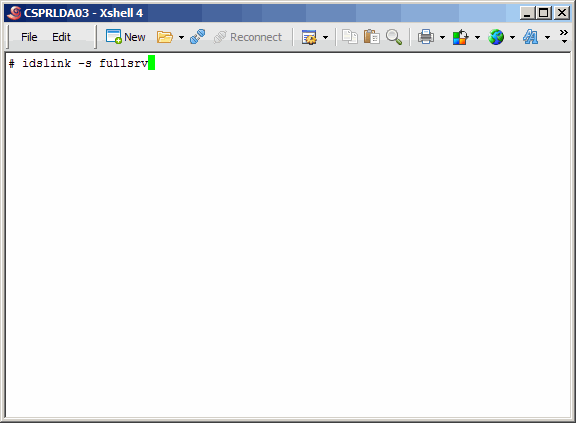

idslink -s fullsrv

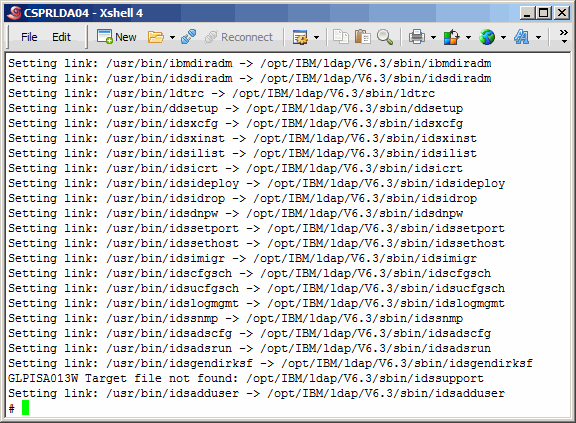

Here we see the many links being created for a plethora of other TDS-related utilities.

Repeat for secondary master.

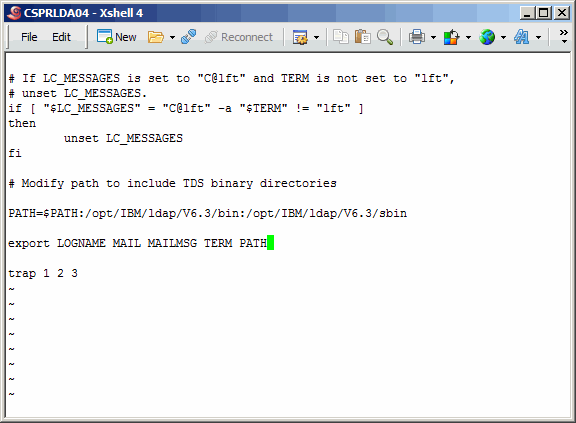

vi /etc/profile



Repeat for secondary master.

Repeat for secondary master.

Repeat for secondary master.

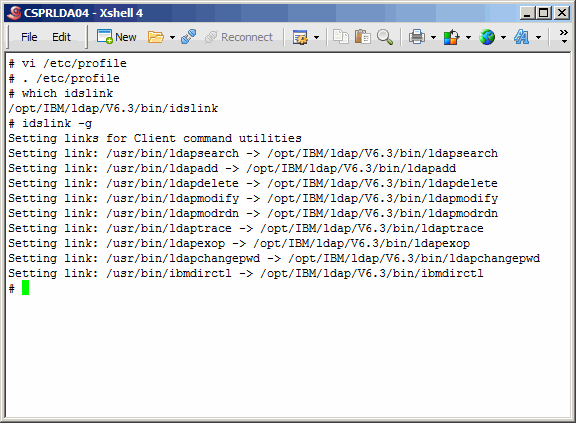

. /etc/profile
which idslink
idslink -g



Repeat for secondary master.

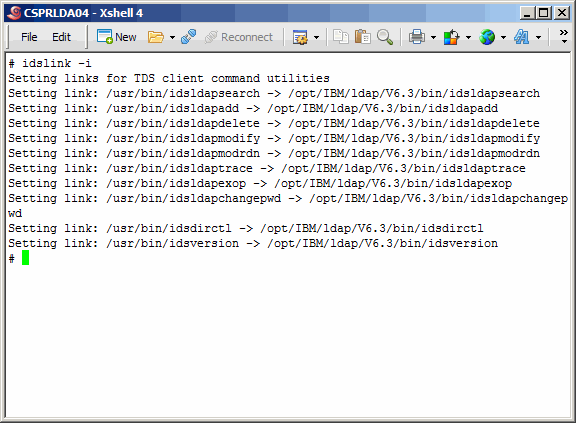

idslink -i



Repeat for secondary master.


idslink -s fullsrv



Repeat view for secondary master.

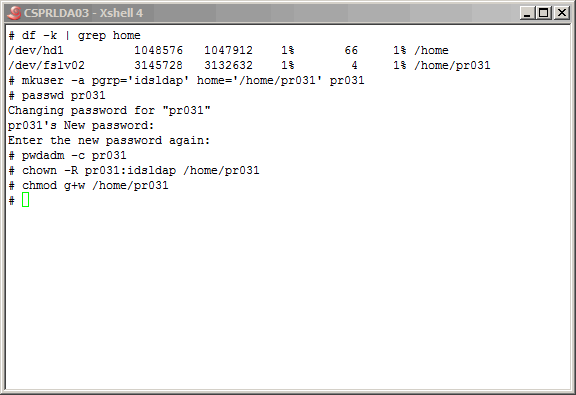

Now it is finally time to begin the fun work; that of creating and configuring LDAP instances. In this section we will do some UNIX work as well as TDS work. Let's start by creating the UNIX user that will own the LDAP instance on the primary master server. When TDS is installed, the UNIX group "idsldap" is created, and two UNIX user accounts are added to the group: "root" and "idsldap". We will use that group as the instance owner's primary group, as shown here. After creating the user, set the password, and use the "pwdadm" command to to release the user from having to change the password. And finally, make the user's home directory writable for anyone in the "idsldap" group. This is important as we are using the "root" account to create the instance, and the "root" account is in the "idsldap" group.

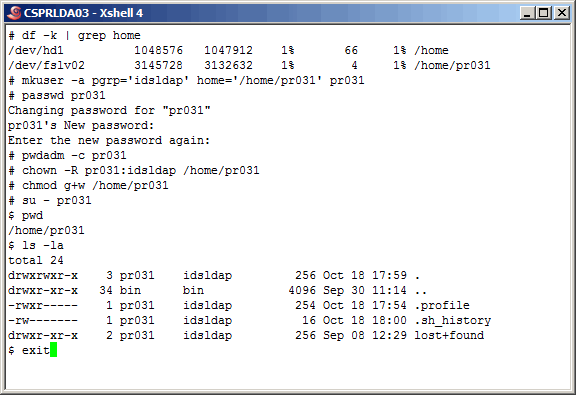

df -k | grep home
mkuser -a pgrp='idsldap' home=/home/pr031 pr031
passwd pr031
pwdadm -c pr031
chown -R pr031:idsldap /home/pr031
chmod g+w /home/pro31



It's not a bad idea at this point to "su" to the new user account and poke around a bit as we do here. Looks good.


su - pr031
pwd
ls -la
exit



Using the "idsicrt" command, create the LDAP instance, as shown here.


id
idsicrt -I pr031 -e 123456789012345 -n

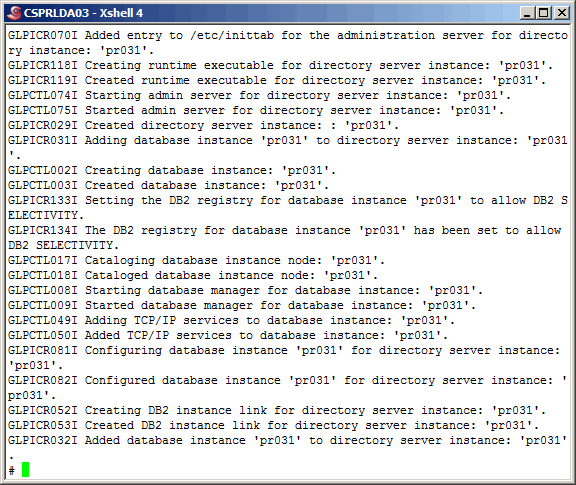

More output from the "idsicrt" command here. During a migration, after creating the instance as we do here, would be the time to migrate the schema and perhaps the keystash file. We will do just that when we create the replica on the secondary master.

Now let's use the "idscfgdb" command to configure the new LDAP instance database.


id
idscfgdb -I pr031 -a pr031 -w prr00t \
         -t pr031 -l /home/pr031 -n

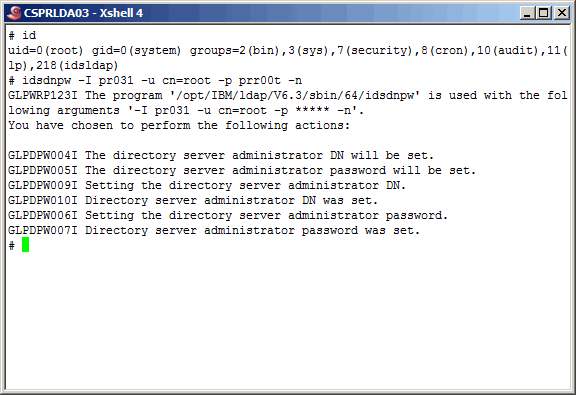

Create the primary instance administrator account and set the password.


id
idsdnpw -I pr031 -u cn=root -p prr00t -n

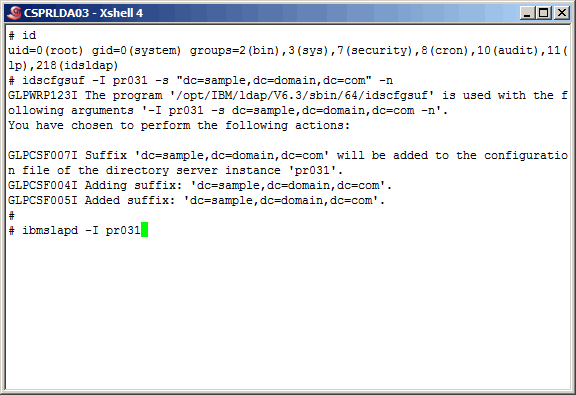

Create the suffix "dc=sample,dc=domain,dc=com" using the "idscfgsuf" command.


id
idscfgsuf -I pr031 -s "dc=sample,dc=domain,dc=com" -n

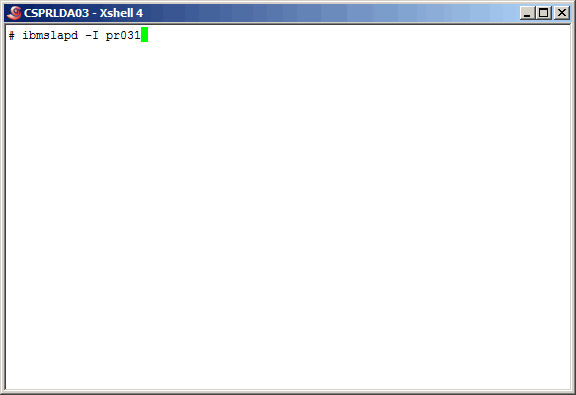

Start the LDAP instance.


ibmslapd -I pr031

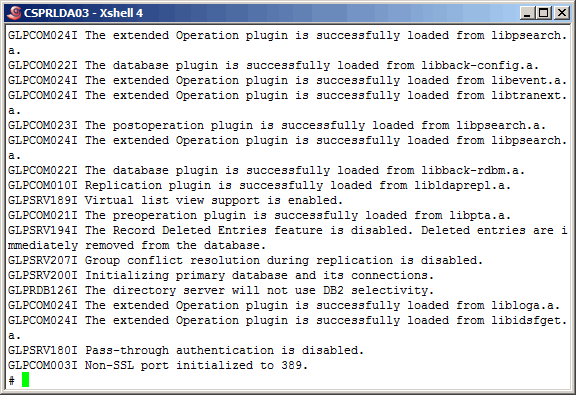

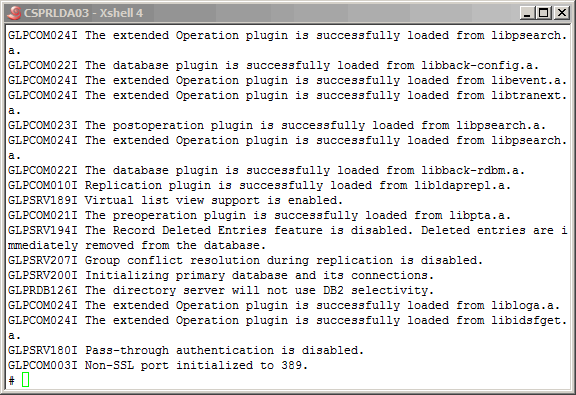

More output from the "ibmslapd" command here.

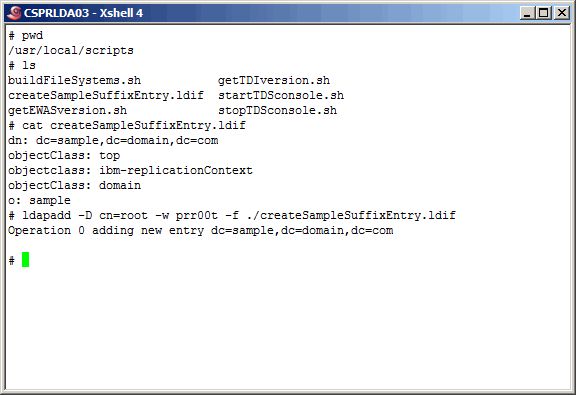

Using createSampleSuffixEntry.ldif as input to the "ldapadd" command, as shown below, create the suffix entry.


pwd
ls
ldapadd -D cn=root -w prr00t -f ./createSampleSuffixEntry.ldif



Using either the command line, or an LDAP browser as we do here, test the login credentials for the instance administrator (cn=root). With this gui, it is easier to take a look at the entire DIT (Directory Information Tree). Apache Directory Studio is open source and completely free.

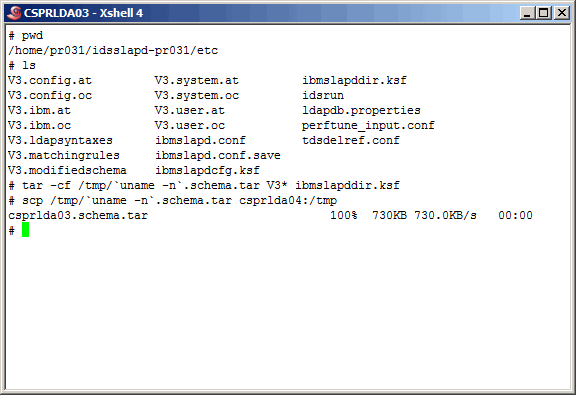

Here we zip up the primary master instance schema files and the keystash file. We will use these when creating the secondary master. We will use the same encryption seed "123456789012345" and the keystash to sync the salt values. While this is not absolutely required for replication, it does lessen the load of replica.


pwd
ls
tar -cf /tmp/`uname -n`.schema.tar V3* ibmslapddir.ksf
scp /tmp/`uname -n`.schma.tar csprlda04:/tmp



Unlike the other "Secondary" sections of this article, this one will be a little more than just a "ditto" of the "Primary". Most of it is the same, but pay close attention towards the middle of the section. Let's start by setting up the UNIX user account as shown

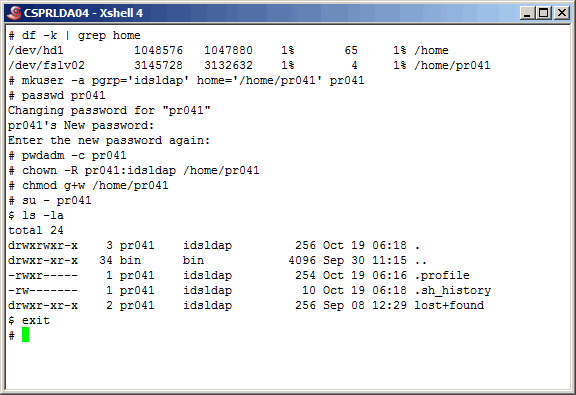

df -k | grep home
mkuser -a pgrp='idsldap' home=/home/pr041 pr041
passwd pr041
pwdadm -c pr041
chown -R pr041:idsldap /home/pr041
chmod g+w /home/pro41

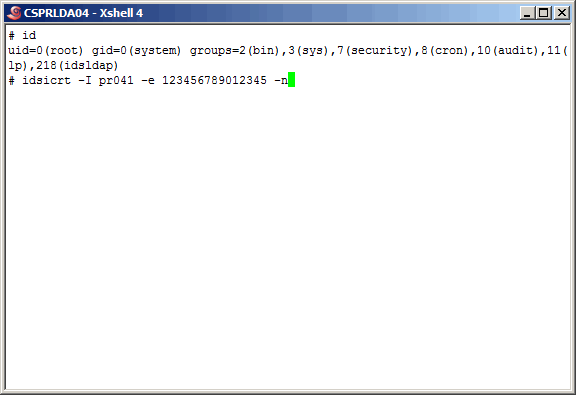

Again, use the "idsicrt" command to create the LDAP instance.


id
idsicrt -I pr041 -e 123456789012345 -n



More command output......

Here is where we deviate a bit from when we created the primary LDAP instance. When creating a replica, there are two things you want to do. One is to make sure the schema's are identical. Therefore we use the same set of V3* files from the primary master. The second thing, although not required, is to use the same keystash file. Using the same seed/salt values for encryption helps in two ways. One, it allows the replicas to work more efficiently and two, if we have to perform exports/imports or some other administration functions, we do not have to worry about encryption/decryption. Recall that earlier we archived the schema and keystash files from the primary master, and using scp we copied the archive to /tmp on the secondary master. Before we get to that we want to move the current V3* and keystash file on the secondary master as shown here. Later we can delete the "backups" subdirectory.


pwd
ls
mkdir backups && mv V3* backups && mv \
      ibmslapddir.ksf backups
ls



Now, explode the archive from /tmp into the current directory as shown.


ls /tmp/*tar
tar -xf /tmp/csprlda03.schema.tar

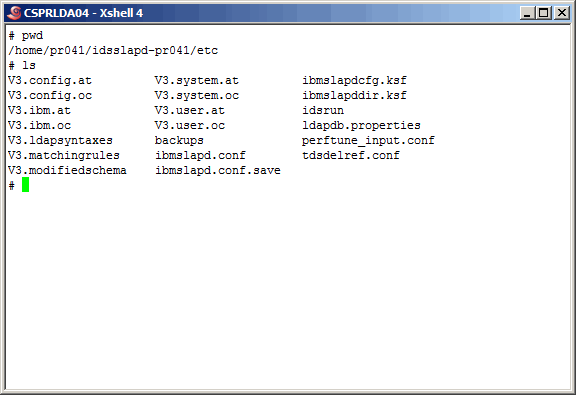

When complete, the directory should be populated as shown here.


pwd
ls

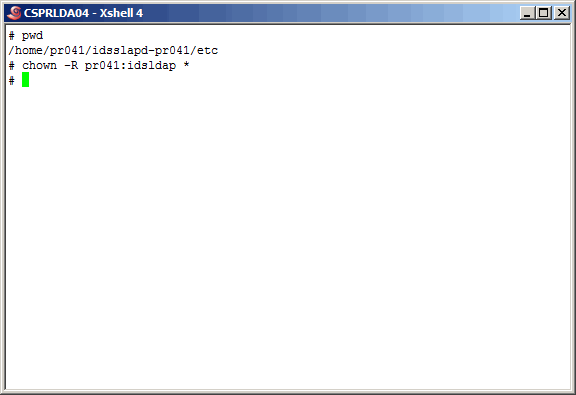

Change the ownership of all these files to "pr041:idsldap".


pwd
chown -R pr041:idsldap *

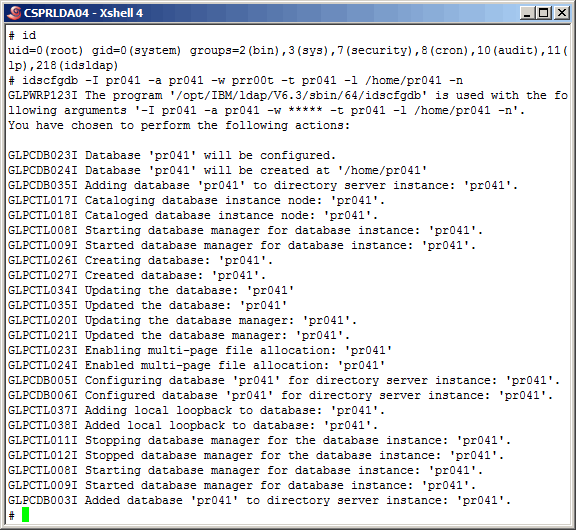

Create the instance database.


id
idscfgdb -I pr041 -a pr041 -w prr00t \
         -t pr041 -l /home/pr041 -n

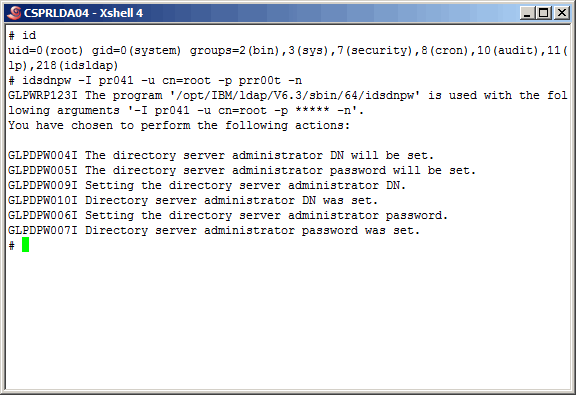

Create the secondary instance administrator account and set the password.


id
idsdnpw -I pr041 -u cn=root -p prr00t -n

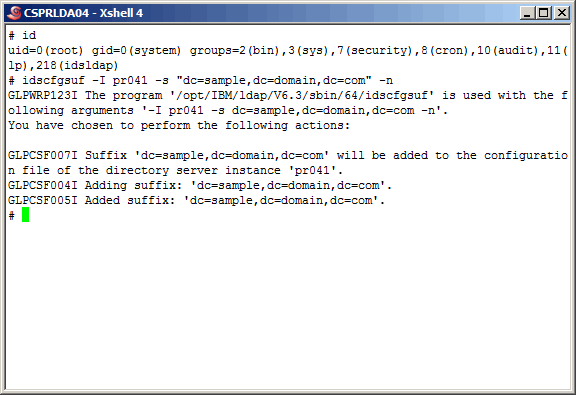

Create the suffix "dc=sample,dc=domain,dc=com" using the "idscfgsuf" command.


id
idscfgsuf -I pr041 -s "dc=sample,dc=domain,dc=com" -n

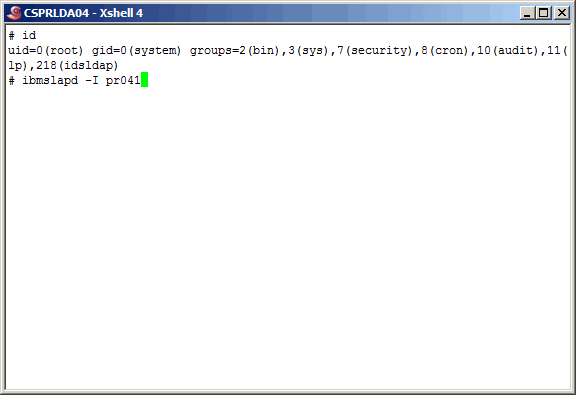

Start the LDAP instance.


id
ibmslapd -I pr041



More output.......

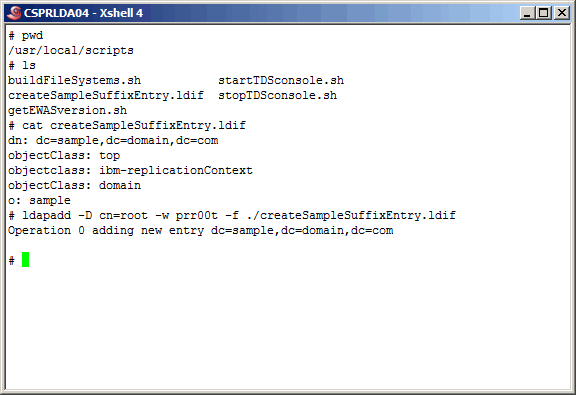

Create the suffix entry.


pwd
ls
ldapadd -D cn=root -w prr00t \
        -f ./createSampleSuffixEntry.ldif

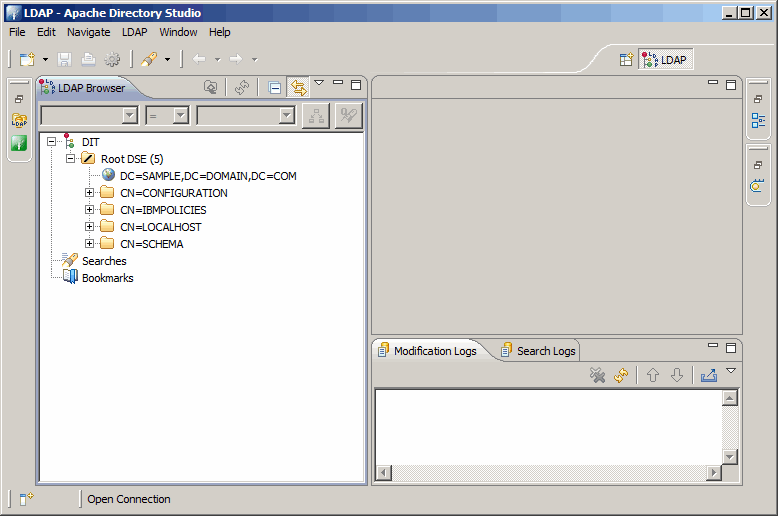

Verify with an LDAP directory browser.

This section will be a combination of a very well written section of IBM's TDS 6.3 documentation and some good UNIX skills. IBM's explanation of configuring replication from the command line is quite good, however in their example they use two peer-to-peer replicas and three or four "consumers" as well. Our example here will simplify things a bit. If you want a more complete example of configuring replication from the UNIX command line, please reference IBM's documentation; it is quite well written. During this section we will make use of ssh key based authentication, allowing us to work entirely from the primary master server (csprlda03), performing tasks remotely on the secondary master (csprlda04). We will begin by stopping both ldap instances, as shown here.

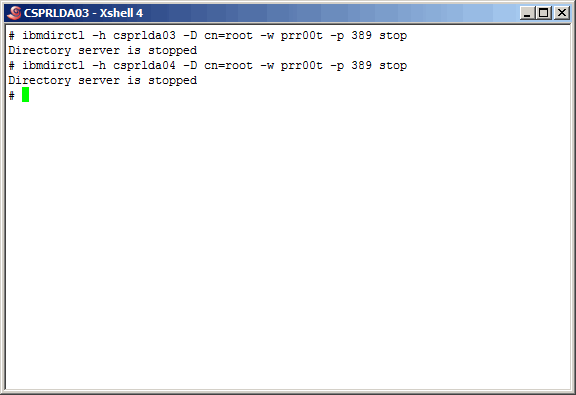

ibmdirctl -h csprlda03 -D cn=root -w prr00t -p 389 stop
ibmdirctl -h csprlda04 -D cn=root -w prr00t -p 389 stop



Now, start the primary master instance in "configuration" mode. If you want to know more about this mode, plese consult IBM's documentation for a complete description. Briefly, this mode is self explanatory, as we can configure the instance only; access to all other data is simply not available.


ibmslapd -I pr031 -a



Also, start the secondary master instance in "configuration" mode.


ssh -n csprlda04 ibmslapd -I pr041 -a

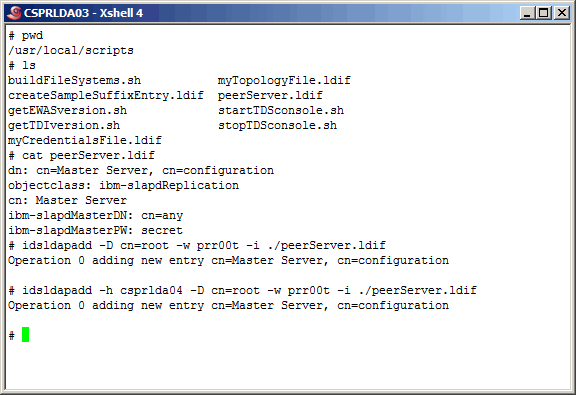

Create peerServer.ldif as shown here and use it as input to the "idsldapadd" command as shown here. This defines both instances as "peer" or "master" servers. You may want to use different credentials, however these will work fine for us.


pwd
ls
idsldapadd -D cn=root -w prr00t \
           -i ./peerServer.ldif
idsldapadd -h csprlda04 -D cn=root -w prr00t \
           -i ./peerServer.ldif



Stop both ldap instances, through the TDS administration daemon. The "ibmslapd" command could also be used.


ibmdirctl -h csprlda03 -D cn=root -w prr00t -p 389 stop
ibmdirctl -h csprlda04 -D cn=root -w prr00t -p 389 stop

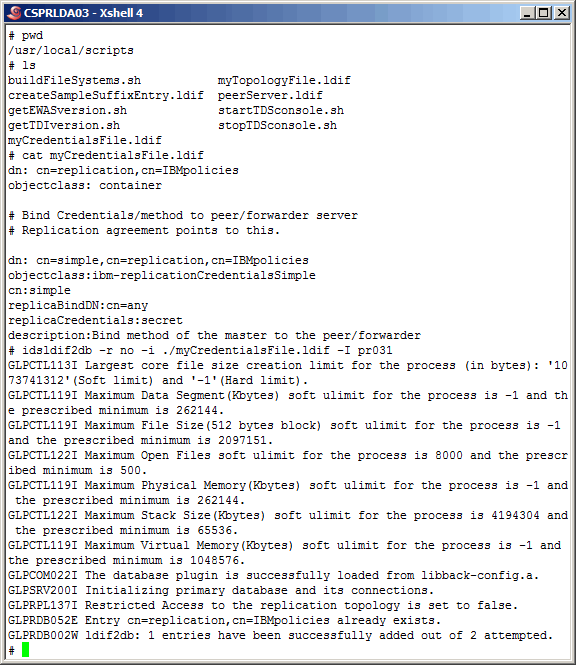

All replication between servers, whether it is peer-to-peer or supplier to consumer is controlled by an "agreement". Here we have created the file myCredentialsFile.ldif that contains authentication information needed by any other server to perform replication activities on a particular server. Using the "idsldif2db" command, create these objects in the primary master instance. Using the "idsldif2db" cannot be performed if the instance is using the database; this explains why we stopped the instances.


pwd
ls
cat myCredentialsFile.ldif
idsldif2db -r no -i ./myCredentialsFile.ldif \
           -I pr031

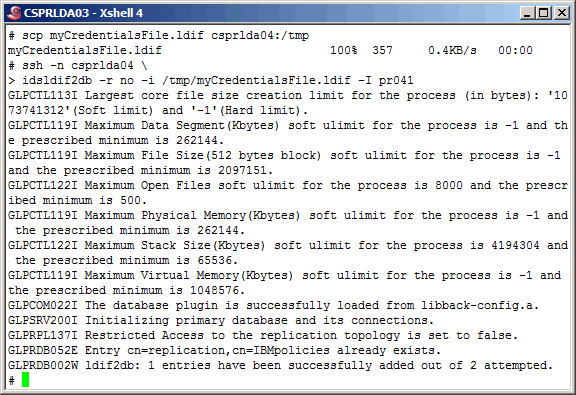

Copy (scp) the ldif to the secondary master and (via ssh) perform the same action on the secondary master.


scp myCredentialsFile.ldif csprlda04:/tmp
ssh -n csprlda04 idsldif2db -r no \
    -i /tmp/myCredentialsFile.ldif -I pr041



The final configuration step in replication is to define the topology. Think of the topology as the detailed information about what is being replicated to to/from whom it is being replicated. Topology information required for ldap instances to communicate is confined to the server FQDN (Fully Qualified Domain Name), port number, and the ldap parameter "ibm-slapdServerId". The server id is found in the ldap instance configuration file "ibmslapd.conf". Here we fetch that information for both master servers.


grep -i serverid \
        /home/pr031/idsslapd-pr031/etc/ibmslapd.conf
ssh -n csprlda04 grep -i serverid \
       /home/pr031/idsslapd-pr031/etc/ibmslapd.conf



Here is the topology we will use for this article. The topology ldif is added to every ldap server within the topology. This information is fairly sel-explanatory; see IBM's documentation for more detailed information.


cat myTopologyFile.ldif

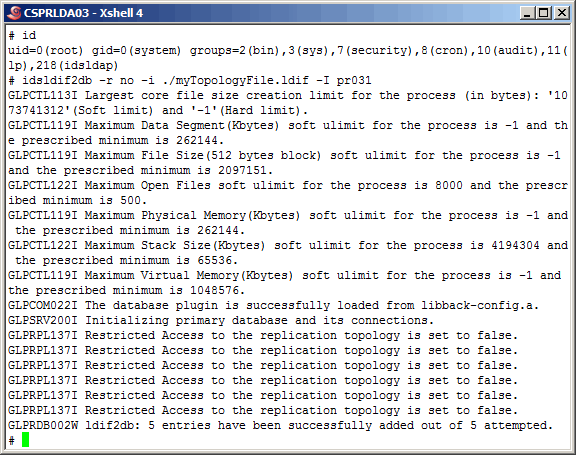

Using "idsldif2db" populate the primary master server instance/database with the topology.


id
idsldif2db -r no -i ./myTopologyFile.ldif \
                 -I pr031

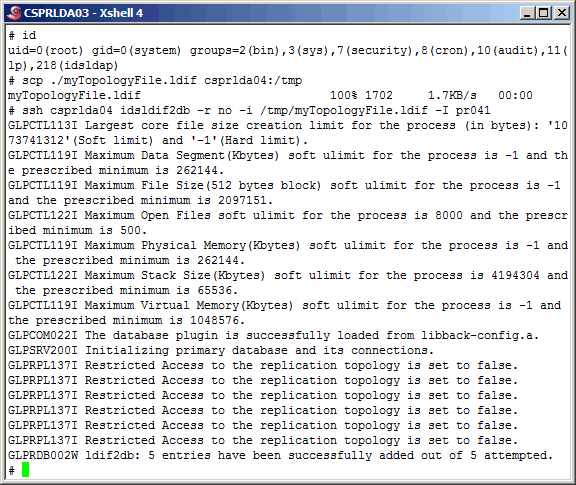

Using scp/ssh copy the topology data to the secondary master, and populate the secondary master server instance/database.


id
scp ./myTopologyFile.ldif csprlda04:/tmp
ssh csprlda04 idsldif2db -r no \
    -i /tmp/myTopologyFile.ldif -I pr041



We are ready to perform some command-line testing at this point. Start the primary master ldap instance.


ibmslapd -I pr031



More output........

Now start the secondary master server ldap instance.


ssh csprlda04 ibmslapd -I pr041



More output......

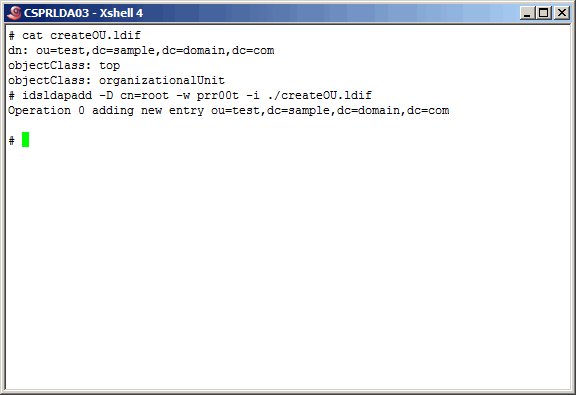

Now, using createOU.ldif as input for the "idsldapadd" command create an object in the primary master.


cat createOU.ldif
idsldapadd -D cn=root -w prr00t -i ./createOU.ldif

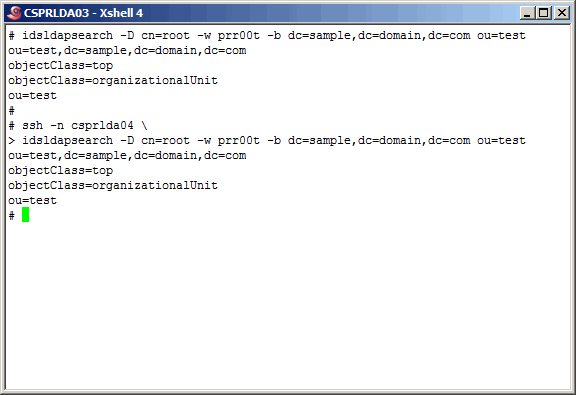

Check for the creation (replication) in the secondary master. And "bingo", it was indeed created. This is a simple test of one-way replication.


idsldapsearch -D cn=root -w prr00t \
	      -b dc=sample,dc=domain,dc=com ou=test
ssh -n csprlda04 idsldapsearch -D cn=root -w prr00t \
              -b dc=sample,dc=domain,dc=com ou=test

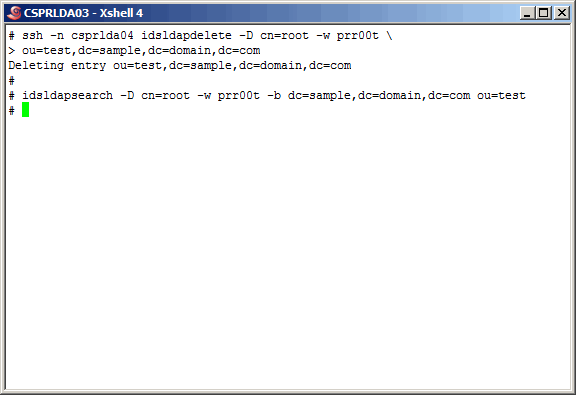

Here, we delete the new object on the secondary master, and verify that replication is bi-directional as the object is now gone on the primary master as well. Replication has now been set up as a master-master agreement. Of course, to be thorough about anything, you should probably check the ibmslapd.log file as well. We did, and found no errors.


ssh -n csprlda04 idsldapdelete -D cn=root -w prr00t \
    ou-test,dc=sample,dc=domain,dc=com
idsldapsearch -D cn=root -w prr00t \
              -b dc=sample,dc=domain,dc=com ou=test



In this section of this article, we will configure the "IBM Tivoli Directory Server Web Administration Tool". This tool is very handy, at times, to have around. Along with helping non-hardened LDAP veterans admininister LDAP, IBM will sometimes want us to use it when helping diagnose a problem.

Log in using the default credentials superadmin/secret.

We must define the LDAP instances we want to manage. Click as shown here.

Add a console server. Click as shown.

Fill in, something like we did here. I would suggect however to always use the server FQDN as opposed to the "short name". Click on "OK" to save the change.

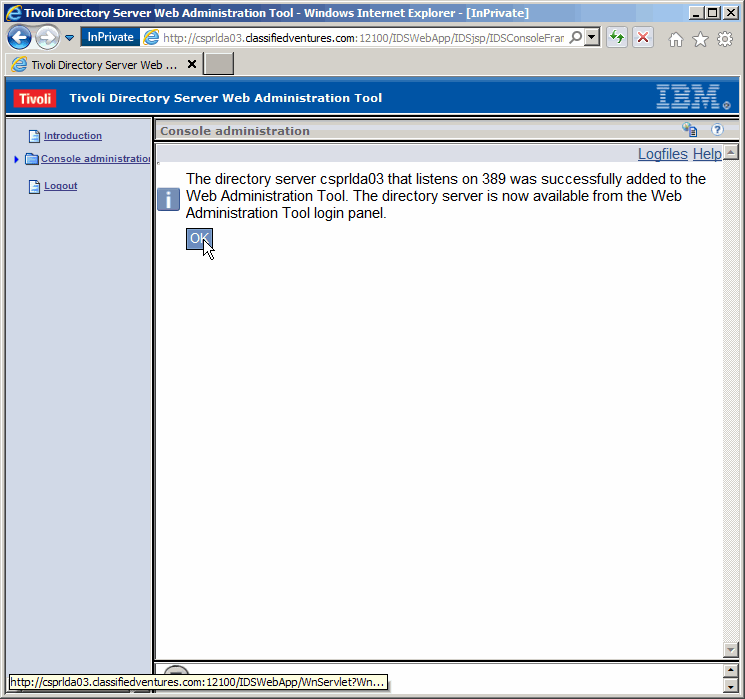

Success. Click as shown.

As we stated prior, we can remotely manage LDAP instances as well. Let's remotely manage the secondary master instance from the primary master by performing another "Add".

Again, the FQDN should have been used here. Shame on us. :)

Again, success.

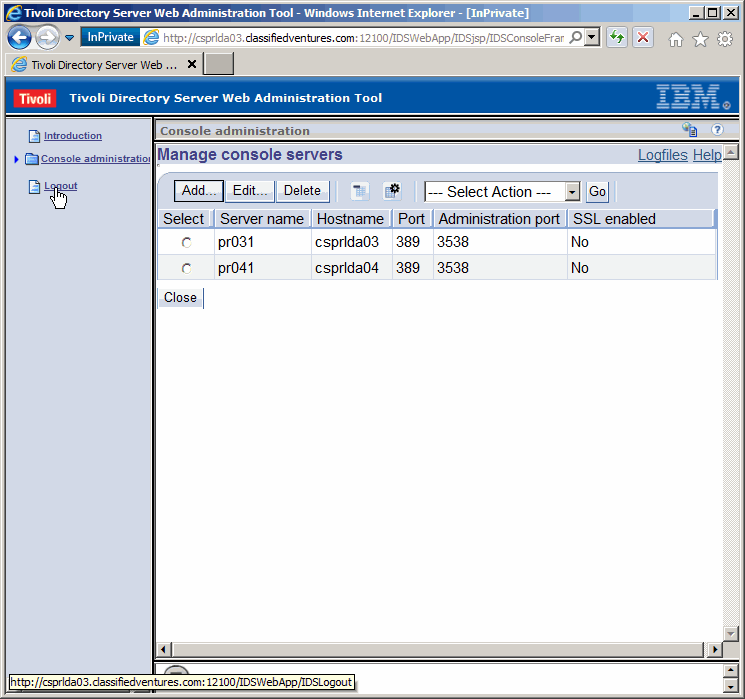

Now we see both instance console servers have been added. We need to logout before we can manage either.

This will take us where we want to be.....

Log in to the primary master, using cn=root/prr00t.

Exapand "Replication management" in the navigation pane and click on "Manage queues". We will take a quick peek at replication.

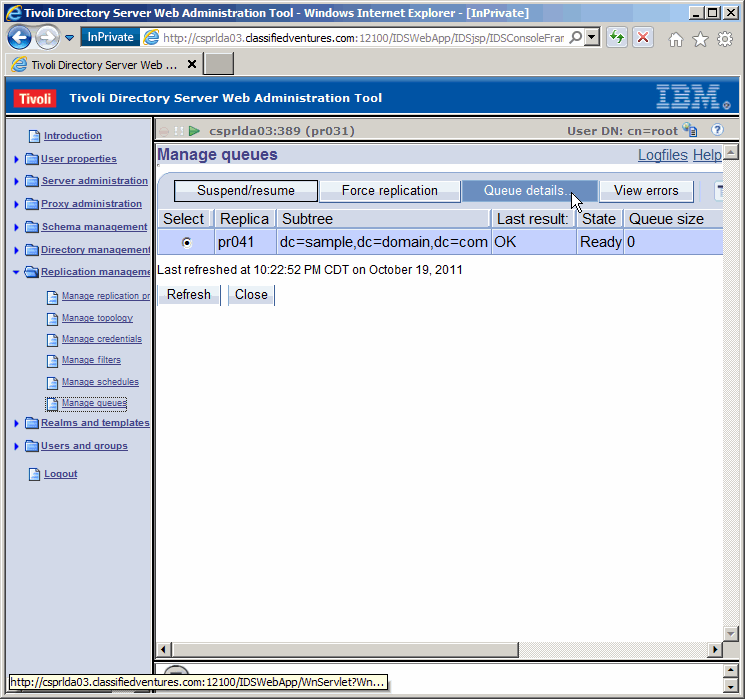

Last result: OK, State Ready, and Queue size 0, is all good news. Now let's take a look at the queue details.

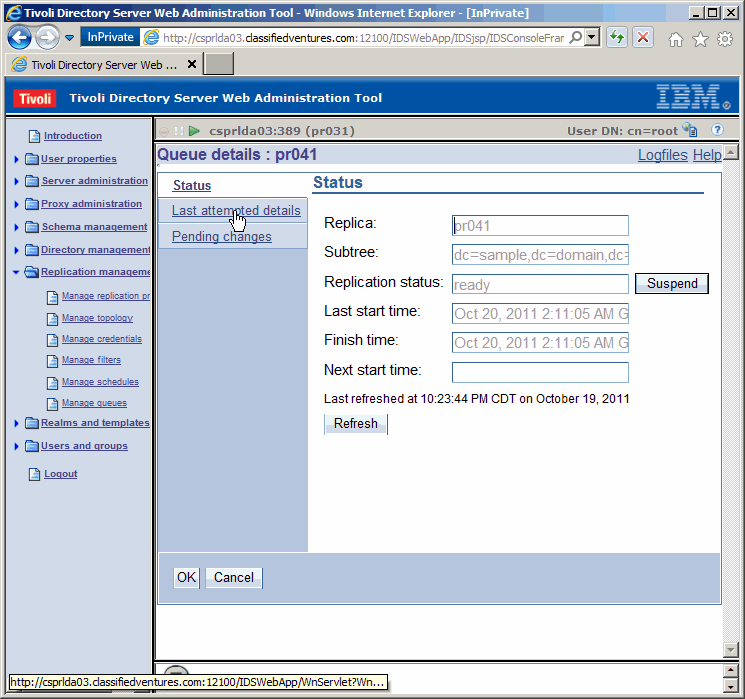

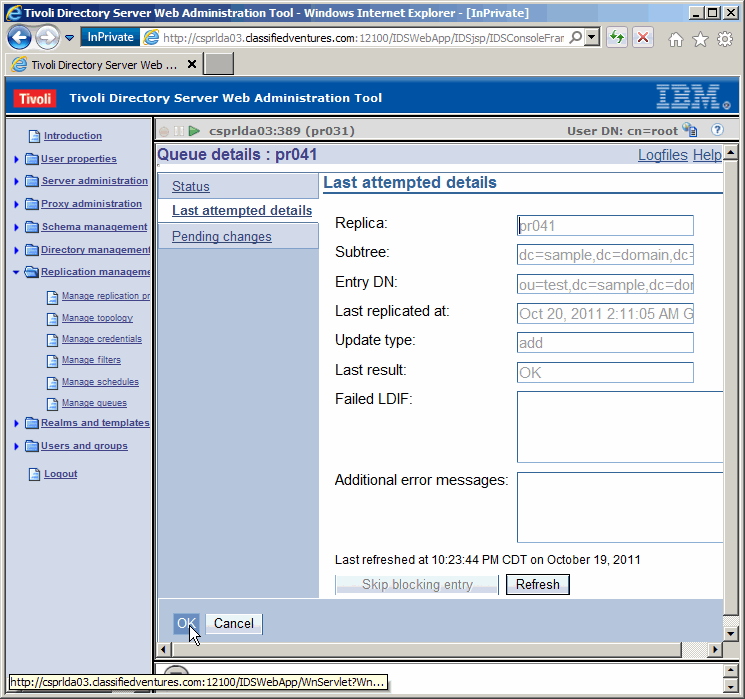

Let's see the details of the last replication transaction.

Here we see the add operation we made on the primary, being done to the secondary.

Logout of the primary master console server.

Login to the secondary master console server.

Let's get to the replication queues again.

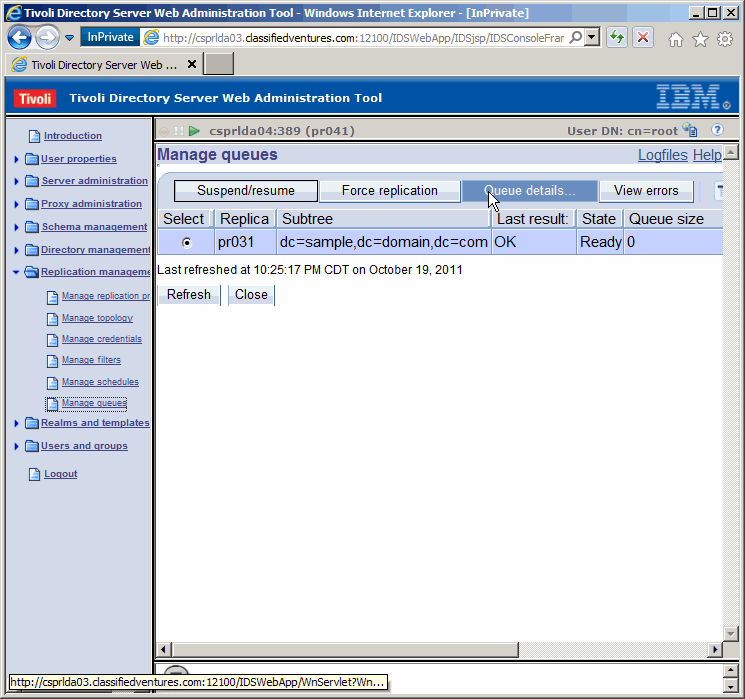

Again looking good; now to the queue details.....

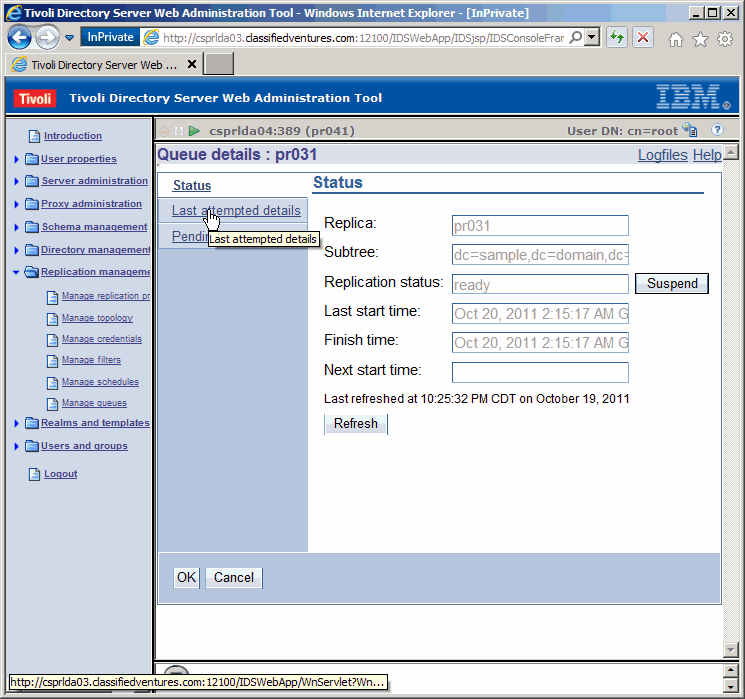

And further to the last replication detail.....

Good. Here we see the delete being replicated back to the primary master.

In the final section of this article, we feel the need to mention data migration, as we mentioned at the beginning of this article. We will not be going through any examples, however we will mention a "lesson learned".

When we first began with IBM Tivoli Directory Server (V6.1), we neglected to consider keeping the seed/salt/crypto information the same on all of our LDAP instances, not even between replica's. At a minimum, unless you have some national secutiry issue, we consider it best parcatice, at least on replica's. In out environment we have several LDAP environments and we move data between them frequently, using the ldif2db/db2ldif commands. These commands CAN be used to move data between instances that are not crypto-sync'd but it is much easier if the seed/salt valuse are the same.

We have now concluded this article. Our intent was to show you the A-Z's of TDS 6.3 LDAP Replication, with some good solid UNIX techniques mixed in. To recap, we demonstrated TDS installation, configuration, integration, and administration. After this all you need to do is take care of backups and monitoring and hopefully you won't have to worry about your LDAP environment. Did I mention tuning?

As it turns out, as we are busy working on the HTML/CSS/php/Java Script formatting of our articles, pretty printing is not yet possible. We are working on it at a low priority.
